SELECT A DIAGRAM
1 - Doors

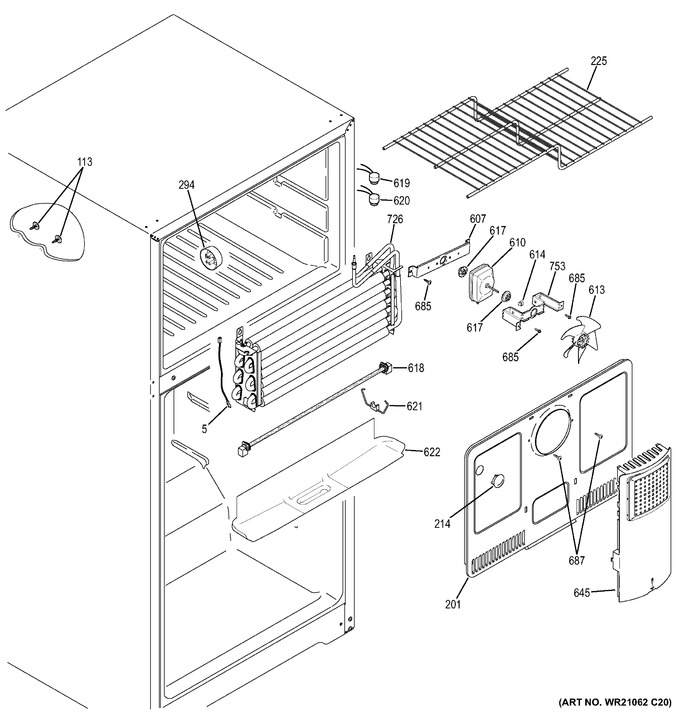

2 - Freezer Section
3 - Fresh Food Section
4 - Fresh Food Shelves
5 - Machine Compartment
6 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WR55X25825 | Harness Jumper Fuse |
|
- | |||||
| 113 | WR01X21403 | Plug Button Im White |
|
- | |||||
| 201 | WR17X11641 | Cover Evap Asm |
|
- | |||||
| 214 | WR02X11760 | Plug Button |
|
- | |||||
| 225 | WG03L01556 | Shelf Asm Fz (Replaces: WR71X10702) |
|
$ 60.74 | |||||
| 607 | WG03A02567 | Bracket Evap Fan Rear (Replaces: WR21X10152) |
|
$ 19.06 | |||||
| 610 | WR60X24645 | Motor Ac/dc Evap Fan |
|
- | |||||
| 613 | WR60X10205 | Blade Evap Fan Asm |
|
$ 21.96 | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 617 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 618 | WR09X21107 | Heater Def Asm |
|
- | |||||
| 619 | WR50X22304 | Thermostat Def |
|
- | |||||
| 620 | WR50X22303 | Thermostat Def |
|
- | |||||
| 621 | WR02X13678 | Holder Element Asm |
|
- | |||||
| 622 | WG03F02788 | Trough Drain (Replaces: WR17X10866) |
|
$ 35.32 | |||||
| 645 | WG03F03630 | Tower Bottom Fz (Replaces: WR17X11521) |
|
$ 27.82 | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 726 | WR87X21168 | Evap And Tube Asm |
|
- | |||||
| 753 | WR02X10516 | Bracket Evap Fan Frt |
|
- |
