SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment

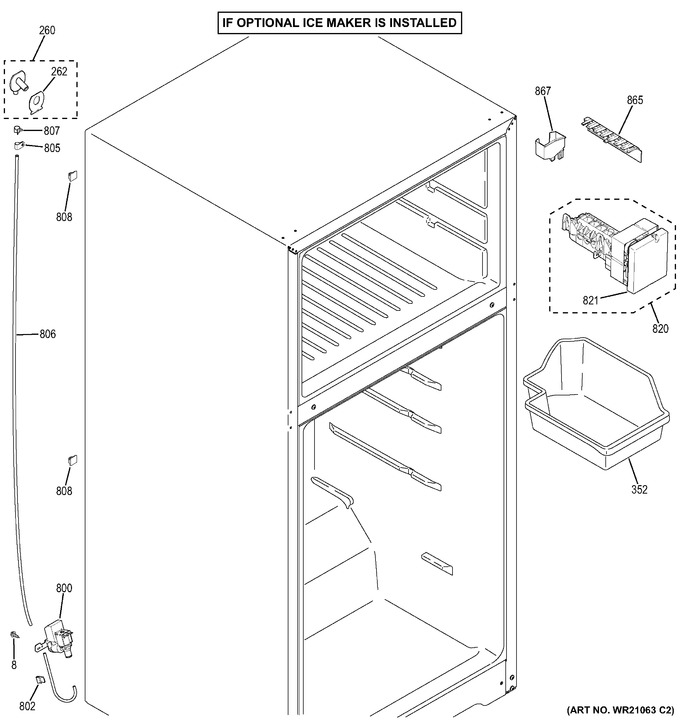

6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
260	WR2X9224		Wr2x9161		Appelez-nous	-
262	WR2X9223		Gasket Donut		Appelez-nous	-
352	WR30X21245		Bucket Ice		Appelez-nous	-
800	WR57X21246		Valve And Tube Asm		Appelez-nous	-
802	WR01X10182		Clip U		Appelez-nous	-
805	WR2X3736		Str Relief		Appelez-nous	-
806	WR17X11492		Tube Plastic		Appelez-nous	-
807	WR02X11437		Clamp		Appelez-nous	-
808	WR2X4039		Adhesive Clip		Appelez-nous	-
820	IM6D		Kit Rplcmt Wr30x10093   (Replaces: WR30X10093)			Immediately	$ 274.39
821	WR29X10084		Cover Icemaker		Appelez-nous	-
865	WG03F03761		Stripper Im   (Replaces: WR29X10083)				$ 58.80
867	WR29X10046		Cup Fill Im		Appelez-nous	-
	WR01A00163		Bumper Lid			Immediately	$ 6.35
	WG02A01983		AdhÃ#sif Blanc 80ml				$ 74.17
	WG03L08747		Gasket Door Ff Ww   (Replaces: WG03L06701)				$ 137.30
	WG03L06538		Door Foam Asm Ff Ww				$ 480.22
	WG03L06376		Gasket Door Fz				$ 104.17
	WG03L06353		Blade Evap Fan Asm				$ 16.22
	WG03F07855		Moteur Ventilateur Evaporateur   (Replaces: WG03F05834)			Immediately	$ 136.29
	WG03A02430		Control Temp   (Replaces: WG03F04987)				$ 99.03
	WG03F04737		Plug Door Reversable			Immediately	$ 3.97
	WG03F05862		Boitier Du Ventilateur Asm.   (Replaces: WG03F04664)			Immediately	$ 353.84
	WG03F01479		Thermostat			Immediately	$ 62.97
	WG03F00975		Defrost Timer   (Replaces: WG03F01435)			Immediately	$ 81.73
	WG03F00306		Grommet Evap Fan			Immediately	$ 6.99
	WG03A02430		Service De Controle Froid Kit				$ 99.03
	WG03A02332		Fz Moisture Kit Ww				$ 157.91

    View Diagram in Separate Window       Print Part List
