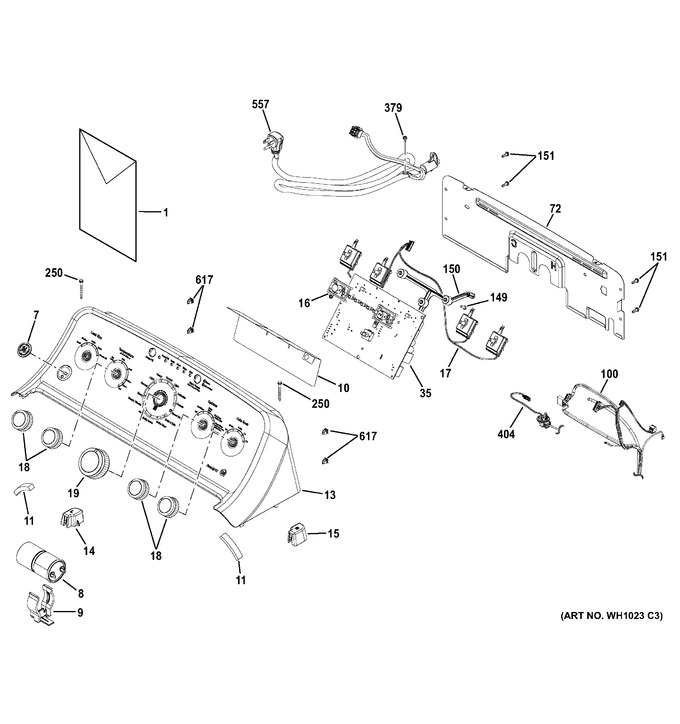

SELECT A DIAGRAM

1 - Controls & Backsplash


2 - Top Panel & Lid


3 - Tub & Motor


4 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16897		Pm Sheet Mini Manual		Appelez-nous	-
1	49-90549		Pm Manual Use And Care		Appelez-nous	-
7	WH42X24097		Badge Ge		Appelez-nous	-
8	WH12X24103		Capacitor		Appelez-nous	-
9	WH16X24102		Capacitor Bracket		Appelez-nous	-
10	WH01X24396		Control Board Shield		Appelez-nous	-
11	WH08X24099		Backsplash Foam Seal		Appelez-nous	-
13	WH42X24478		Backsplash Asm, Ww		Appelez-nous	-
14	WH16X24476		Left Backsplash Support		Appelez-nous	-
15	WH16X24477		Right Backsplash Support		Appelez-nous	-
16	WH01X24376		Button Tree		Appelez-nous	-
17	WH12X24380		Selector Switch Asm (4)		Appelez-nous	-
18	WH01X24378		Knob Options Asm		Appelez-nous	-
19	WH01X24377		Knob Main Asm		Appelez-nous	-
35	WH18X24935		Le Triac Machine Control		Appelez-nous	-
72	WH10X24397		Control Rear Panel		Appelez-nous	-
100	WH19X24356		Harness Asm Green		Appelez-nous	-
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
150	WH16X24375		Bracket Pcb		Appelez-nous	-
151	WH02X10126		Screw 8-18 B 1hw 1/2 Sn		Appelez-nous	-
250	WR01X10634		Scr 8-18 Ab 13/4 S Hxw		Appelez-nous	-
379	WG04A01257		Scr 10-32 C Hx 7/16 S   (Replaces: WD02X10159)				$ 3.97
404	WH19X24141		Lid Lock Harness		Appelez-nous	-
557	WH19X24142		Power Cord		Appelez-nous	-
617	WR2X8349		Grommet Scr Closed		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
