SELECT A DIAGRAM

1 - Freezer Door

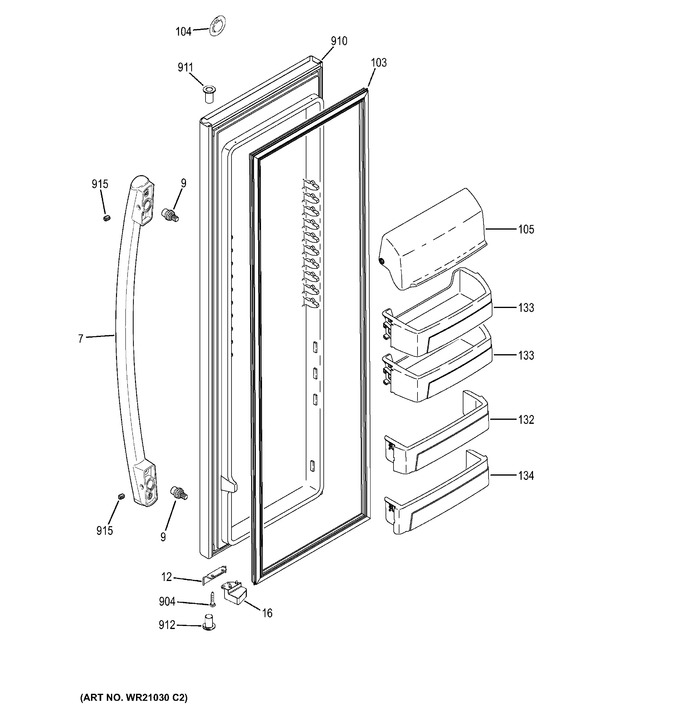

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X21070		Arc Handle Asm Dg		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A00225		Door Stop   (Replaces: WR02X13425)				$ 12.40
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
103	WR24X20456		Gasket		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
105	WR22X24438		Door Dairy		Appelez-nous	-
132	WR71X24430		Shelf Fixed Ff		Appelez-nous	-
133	WR71X24428		Shelf Module Ff		Appelez-nous	-
134	WR71X24429		Shelf Fixed Ff		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X24434		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
