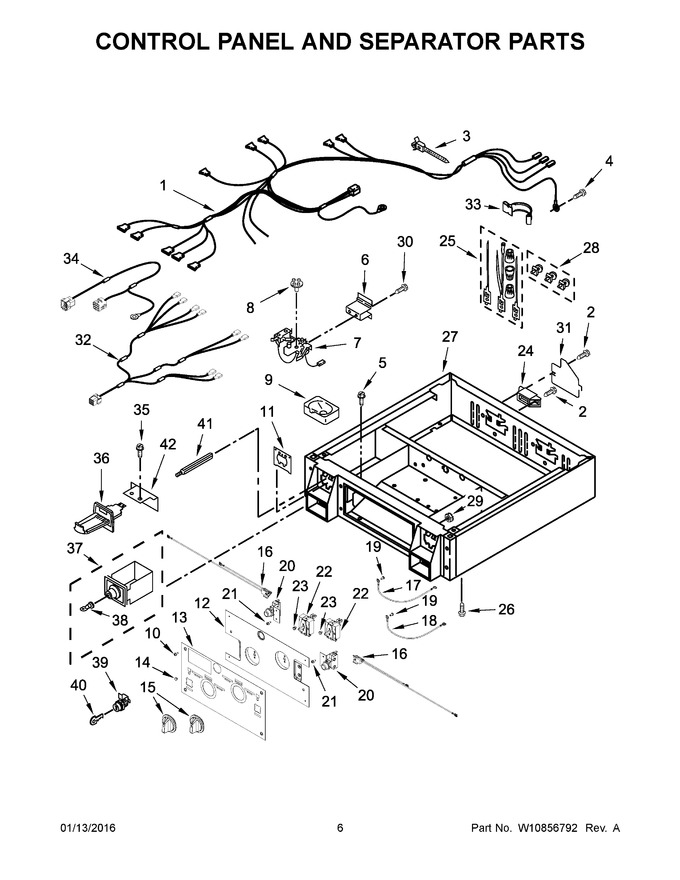

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10807482 | Harness, Wire |
|
- | |||||
| 2 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 | |||||
| 3 | WPW10155270 | Cable Tie (Replaces: W10155270) |
|
$ 7.02 | |||||
| 4 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 5 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 6 | 3390114 | Bracket, Timer |
|
- | |||||
| 7 | 279737 | Timer (Replaces: 3389668) |
|
Immediately | $ 312.10 | ||||
| 8 | WP3387974 | Timing Cam, 3-pin (60 Minutes) (Replaces: 3387974) |
|
$ 8.74 | |||||
| 9 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 77.91 | ||||
| 10 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 11 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 28.89 | ||||
| 12 | W10684161 | Panel, Control |
|
- | |||||
| 13 | W10684157 | Fascia Assembly |
|
- | |||||
| 14 | WPW10133502 | Indicator Lights Assembly (Replaces: W10133502) |
|
$ 13.51 | |||||
| 15 | W10492415 | Knob |
|
$ 20.62 | |||||
| 16 | W10662107 | Lamp, Indicator |
|
$ 27.18 | |||||
| 17 | 3401699 | Jumper Wire (Replaces: 8539882) |
|
- | |||||
| 18 | 3401699 | Jumper, Wire (ground) |
|
- | |||||
| 19 | WP489128 | Screw (Replaces: 303921) |
|
$ 11.40 | |||||
| 20 | W11097274 | Switch, Push To Start (Replaces: W10424310) |
|
$ 70.83 | |||||
| 21 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 22 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 169.74 | |||||
| 23 | W10139100 | Screw |
|
$ 13.01 | |||||
| 24 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 25 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 26 | 3400500 | Bolt |
|
Immediately | $ 14.04 | ||||
| 27 | W10862444 | Collar |
|
$ 795.56 | |||||
| 28 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 29 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 30 | WP3400094 | Screw (Replaces: 3400094) |
|
$ 9.26 | |||||
| 31 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 32 | W10807826 | Jumper, Csp Console |
|
- | |||||
| 33 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.64 | |||||
| 34 | W10734526 | Jumper, Lower To Collar |
|
- | |||||
| 35 | WP356418 | Screw (Replaces: 96435) |
|
$ 9.26 | |||||
| 36 | W11126319 | Coin Chute (Replaces: 8316520) |
|
Immediately | $ 310.89 | ||||
| 37 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 178.05 | ||||
| 38 | N/P | Key (money Box) (when Ordering, Specify Vendor And Key Number) |
|
- | |||||
| 39 | W11315637 | 777 Lock And Key, Complete (Replaces: 8316526) |
|
Immediately | $ 40.47 | ||||
| 40 | N/P | Key (service Door) (when Ordering, Specify Vendor And Key Number) |
|
- | |||||
| 41 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 78.95 | ||||
| 42 | 3390424 | Extension, Slide |
|
Immediately | $ 71.66 | ||||
| 36A | W11312584 | Insert - Blank (Replaces: 8316264) |
|
$ 32.97 | |||||
| 36B | 8316265 | Insert - 25 Cent |
|
- | |||||
| 8A | 51-161-6 | Timing Cam, 6 Pin (30 Minutes) (Replaces: 343777) |
|
$ 34.52 | |||||
| NI | N/P | Coin Mech. Parts May Be Ordered 1-800-523-1510 |
|
- |
