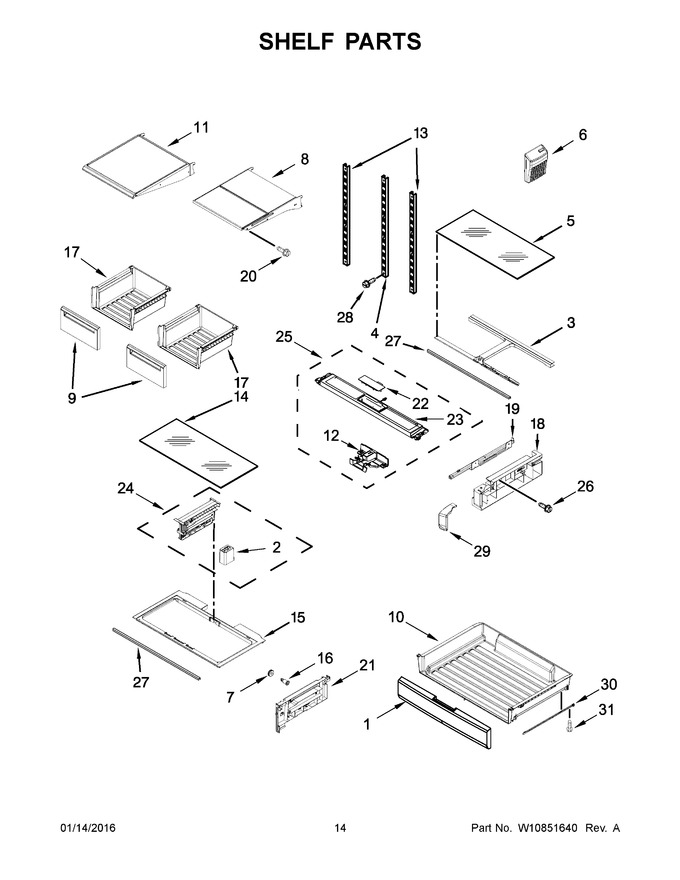

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10559660 | Front, Pantry (Replaces: W10559660) |
|
$ 244.13 | |||||
| 2 | W10530315 | Support, Crisper |
|
$ 17.00 | |||||
| 3 | W10515051 | Support, Pantry |
|
$ 62.37 | |||||
| 4 | WPW10248516 | Ladder, Center (Replaces: W10248516) |
|
$ 35.89 | |||||
| 5 | WPW10248799 | Glass, Pantry (Replaces: W10248799) |
|
$ 225.08 | |||||
| 6 | W11605789 | Holder, Produce Filter (Replaces: W10408748) |
|
Immediately | $ 17.66 | ||||
| 7 | WPW10248544 | Roller, Guide (Replaces: W10248544) |
|
$ 8.09 | |||||
| 8 | WPW10402712 | Shelf, Tuck (Replaces: W10402712) |
|
$ 221.09 | |||||
| 9 | W10847546 | Assembly, Crisper Front (Replaces: W10524913) |
|
Immediately | $ 107.98 | ||||
| 10 | WPW10654844 | Pan, Pantry (Replaces: W10498901) |
|
Immediately | $ 130.40 | ||||
| 11 | WPW10402695 | Assembly, Shelf (Replaces: W10402695) |
|
$ 214.75 | |||||
| 12 | W10512596 | Knob, Pantry Temperature Control |
|
- | |||||
| 13 | W11690684 | Ladder, Side (Replaces: W10372170) |
|
$ 50.62 | |||||
| 14 | WPW10248578 | Glass, Crisper (Replaces: W10248578) |
|
$ 331.71 | |||||
| 15 | W10717574 | Cover, Crisper |
|
$ 163.33 | |||||
| 16 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 | |||||
| 17 | W10850129 | Pan, Crisper (Replaces: W10410352) |
|
Immediately | $ 153.15 | ||||
| 18 | W10248798 | Sideplate, Pantry (left Hand) |
|
$ 97.50 | |||||
| 19 | W10508327 | Slide, Pantry (left Hand) |
|
$ 301.07 | |||||
| 20 | W10421495 | Screw |
|
$ 19.09 | |||||
| 21 | W11173721 | Plate, Crisper (left Hand) (Replaces: W10530311) |
|
$ 35.25 | |||||
| 22 | W10554281 | Housing, Pantry Temperature Control |
|
- | |||||
| 23 | W10525200 | Cover, Pantry Top |
|
- | |||||
| 24 | W10549606 | Assembly, Crisper Track |
|
$ 123.20 | |||||
| 25 | W10554737 | Assembly, Front Pantry Cover |
|
- | |||||
| 26 | W10185612 | Screw |
|
$ 7.08 | |||||
| 27 | WPW10236512 | Support, Front (Replaces: W10236512) |
|
$ 134.05 | |||||
| 28 | W10423560 | Screw |
|
- | |||||
| 29 | W10426799 | Front, Sideplate (pantry) (left Hand) |
|
- | |||||
| 30 | W10508330 | Runner, Pantry Roller (left Hand) |
|
- | |||||
| 31 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 7.30 | |||||
| 18A | W10248796 | Sideplate, Pantry (right Hand) |
|
$ 123.03 | |||||
| 19A | W10508326 | Slide, Pantry (right Hand) |
|
$ 311.48 | |||||
| 21A | W10530310 | Plate, Crisper (right Hand) |
|
$ 26.72 | |||||
| 29A | W10426797 | Front, Sideplate (pantry) (right Hand) |
|
$ 32.39 | |||||
| 30A | W10508328 | Runner, Pantry Roller (right Hand) |
|
- |
