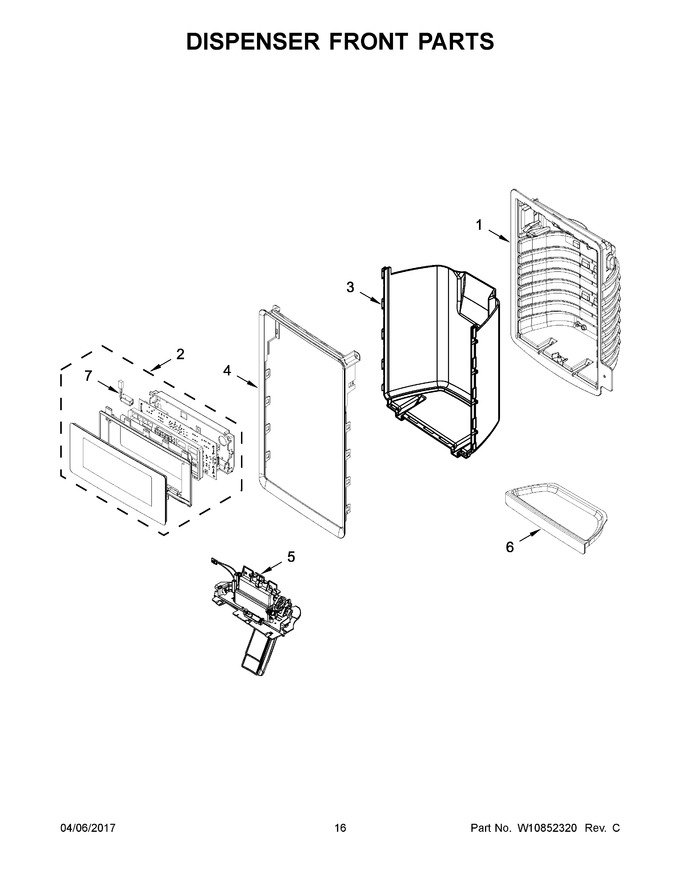

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10852669		Assembly, User Interface (silver)   (Replaces: W10808730)				$ 456.33
3	W10488308		Wall, Dispenser False (white)		Appelez-nous	-
4	W10462438		Ring, Trim (white)				$ 38.57
5	W11175839		Assembly, Separator (white)   (Replaces: W10616132)				$ 155.14
6	W10606644		Tray, Drip (white)				$ 42.38
7	W11290115		Assembly, Led   (Replaces: W10470750)				$ 84.45
2A	W10865869		Assembly, User Interface (black)   (Replaces: W10808731)				$ 442.48
3A	W10488322		Wall, Dispenser False (black)				$ 87.54
3B	W10712262		Wall, Dispenser False (grey)				$ 84.57
4A	W10462439		Ring, Trim (black)				$ 38.46
4B	WPW10402180		Ring, Trim (chrome)   (Replaces: W10402180)			Immediately	$ 60.92
5A	WPW10616133		Assembly, Separator (black)   (Replaces: W10616133)				$ 258.46
5B	WPW10616134		Assembly, Separator (grey)   (Replaces: W10616134)				$ 209.79
6A	W10606643		Tray, Drip (black)				$ 29.37
6B	W10709233		Tray, Drip (grey)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
