01 - Cover Sheet

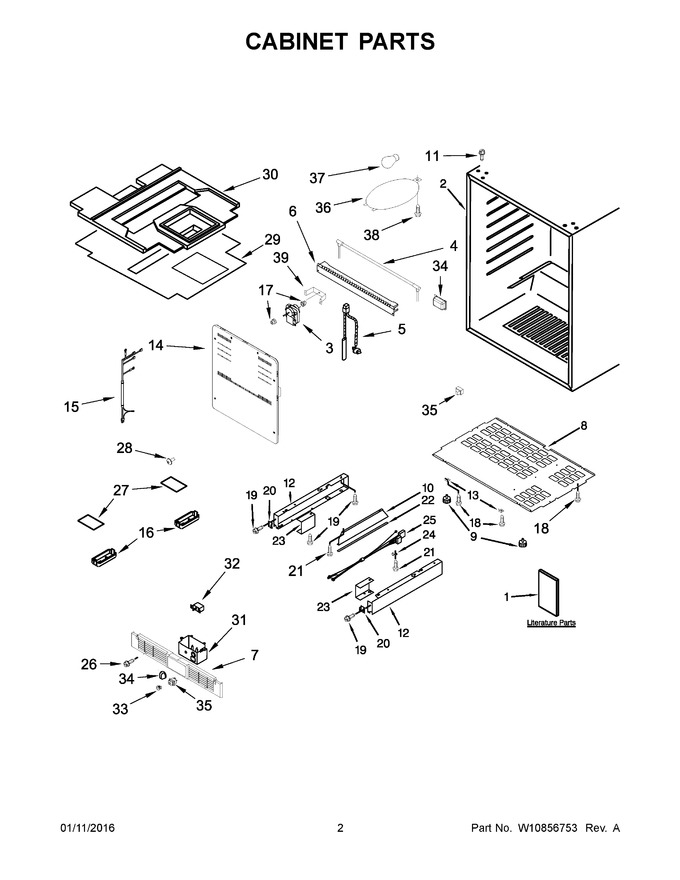

02 - Cabinet Parts
03 - Shelf Parts
04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10741571 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Service Part) |
|
- | |||||
| 3 | W10922164 | Motor, Evaporator Fan (Replaces: W10841206) |
|
- | |||||
| 4 | W11230119 | Heater, Defrost (Replaces: 4344746) |
|
$ 145.69 | |||||
| 5 | W10244414 | Bi-metal |
|
$ 111.91 | |||||
| 6 | 4344747 | Shield, Heat |
|
$ 78.49 | |||||
| 7 | 4344761 | Grille |
|
- | |||||
| 8 | W10772863 | Cover, Bottom |
|
$ 91.41 | |||||
| 9 | W11106296 | Leg, Leveling (Replaces: 4344763) |
|
$ 19.03 | |||||
| 10 | W10204638 | Brace, Support |
|
- | |||||
| 11 | W10319189 | Screw |
|
$ 71.14 | |||||
| 12 | 4344789 | Frame, Side (left Hand) |
|
$ 345.59 | |||||
| 13 | 4344771 | Bracket, Grille |
|
$ 104.76 | |||||
| 14 | W10856829 | Fan Cover Assembly |
|
- | |||||
| 15 | W10856843 | Wiring Harness Assembly |
|
- | |||||
| 16 | W10775535 | Sensor Case |
|
- | |||||
| 17 | 4344778 | Grommet, Fan Motor |
|
- | |||||
| 18 | 4344826 | Screw |
|
$ 16.70 | |||||
| 19 | W10780355 | Bolt |
|
$ 50.19 | |||||
| 20 | 4344819 | Clip, Grille |
|
- | |||||
| 21 | 4344825 | Screw |
|
- | |||||
| 22 | 4344823 | Seal, Brace |
|
$ 101.83 | |||||
| 23 | 4344820 | Support (left Hand) |
|
- | |||||
| 24 | W11456069 | Clip, Harness (Replaces: 4344824) |
|
Immediately | $ 22.40 | ||||
| 25 | 4344857 | Harness, Wire |
|
- | |||||
| 26 | W10319184 | Screw |
|
- | |||||
| 27 | W10204948 | Sensor Case Seal |
|
- | |||||
| 28 | W10774183 | Screw |
|
- | |||||
| 29 | W10238061 | Plate Cover |
|
- | |||||
| 30 | W10239382 | Support, Fan Cover |
|
- | |||||
| 31 | 4344898 | Control Box |
|
$ 84.83 | |||||
| 32 | W10624145 | Thermostat |
|
$ 153.80 | |||||
| 33 | WP4344767 | Switch, Plunger (Replaces: 4344767) |
|
$ 59.62 | |||||
| 34 | W10319178 | Knob, Thermostat |
|
- | |||||
| 35 | 4344858 | Switch, Light |
|
$ 110.66 | |||||
| 36 | 4344739 | Lens, Light |
|
- | |||||
| 37 | WP22002263 | Bulb, Light (Replaces: 4344740) |
|
Immediately | $ 14.85 | ||||
| 38 | 4344791 | Screw |
|
- | |||||
| 39 | 4344899 | Bracket, Motor |
|
- | |||||
| 12A | 4344770 | Frame, Side (right Side) |
|
- | |||||
| 1A | W10803972 | Energy Guide |
|
- | |||||
| 23A | 4344821 | Support (right Hand) |
|
- |
