01 - Cover Sheet

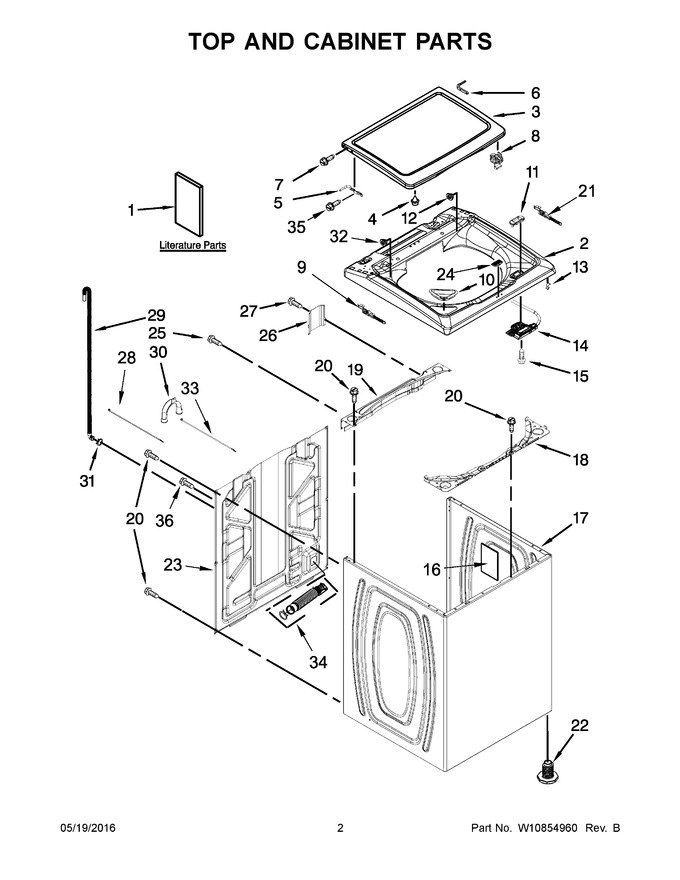

02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10478095 | Installation Instructions |
|
- | |||||
| 2 | WPW10246376 | Top (white) (Replaces: W10246376) |
|
$ 324.59 | |||||
| 3 | WPW10427116 | Lid, Glass Assembly (Replaces: W10427116) |
|
$ 422.28 | |||||
| 4 | WP9724509 | Bumper, Lid (Replaces: 9724509) |
|
Immediately | $ 7.50 | ||||
| 5 | WP8563965 | Hinge, Wire (left) (Replaces: 8563965) |
|
Immediately | $ 27.82 | ||||
| 6 | WP8572974 | Hinge, Wire (right) (Replaces: 8572974) |
|
Immediately | $ 27.45 | ||||
| 7 | W11404293 | Screw (Replaces: W10339706) |
|
Immediately | $ 13.27 | ||||
| 8 | WPW10239968 | Strike, Lid Lock (white) (Replaces: W10239968) |
|
$ 73.41 | |||||
| 9 | W10270398 | Hinge, Lid (left) |
|
$ 122.27 | |||||
| 10 | W10854969 | Bezel, Bleach Dispenser (white) (Replaces: W10240977) |
|
$ 98.91 | |||||
| 11 | WPW10392041 | Bezel, Lid Lock (white) (Replaces: W10392041) |
|
Immediately | $ 7.20 | ||||
| 12 | W10293293 | Bearing Right Hand |
|
$ 15.72 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 14 | W10404050 | Latch, Lid Lock Assembly (Replaces: W10744659) |
|
Immediately | $ 74.08 | ||||
| 15 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 16 | W11096159 | Damper, Sound (Replaces: W10414221) |
|
$ 25.86 | |||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 433.61 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W10215098) |
|
$ 71.81 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 21 | W10270399 | Hinge, Lid (right) |
|
$ 118.72 | |||||
| 22 | WPW10687506 | Foot, Leveling (Replaces: W10397994) |
|
Immediately | $ 23.46 | ||||
| 23 | W11486091 | Panel, Rear (Replaces: W10250884) |
|
Immediately | $ 294.95 | ||||
| 24 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 25 | WP313808 | Screw (Replaces: 311932) |
|
$ 7.47 | |||||
| 26 | W10676061 | Cover, Harness |
|
$ 33.09 | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 28 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 30.30 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.06 | ||||
| 32 | W10293653 | Bearing Left Hand |
|
$ 15.72 | |||||
| 33 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 34 | W10899966 | Hose, Inner Drain Assembly Complete (Replaces: W10444123) |
|
Immediately | $ 32.20 | ||||
| 35 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 36 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 1A | W10566775 | Use & Care Guide |
|
- | |||||
| 1B | W10468342 | Tech Sheet |
|
- | |||||
| 1C | W10331104 | Quick Start Guide |
|
- | |||||
| 1D | W10648283 | Energy Guide |
|
- |
