01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Shelf Parts


05 - Door Parts


06 - Unit Parts


07 - Optional Parts

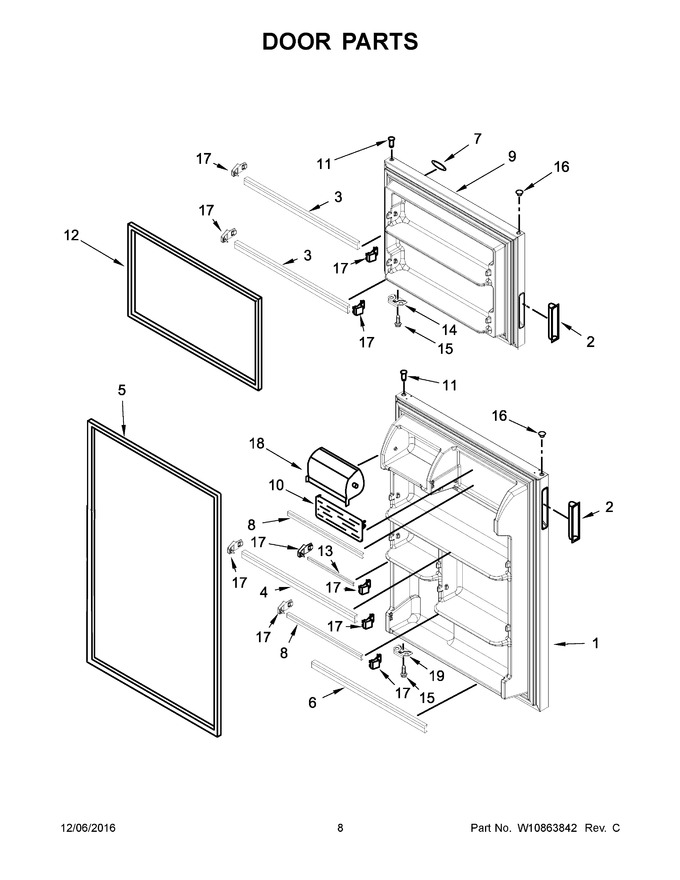

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10680725		Refrigerator Door (includes Door Gasket & Door Handle) (black)   (Replaces: W10680725)				$ 721.90
2	W10174743		Handle, Cup (black)				$ 15.93
3	W11126055		Trim, Door   (Replaces: W10719702)			Immediately	$ 127.34
4	W11170805		Trim, Door   (Replaces: W10678772)				$ 127.34
5	W11240749		Door Gasket, Magnetic (black)   (Replaces: W10678768)			Immediately	$ 300.69
6	W11097831		Trim, Door   (Replaces: W10719703)				$ 12.30
7	W11428492		Badge (white)   (Replaces: W10200425)				$ 83.57
8	W11129820		Trim, Door   (Replaces: W10719700)			Immediately	$ 127.34
9	LW10680728		Freezer Door (includes Door Gasket & Door Handle) (black)   (Replaces: W10680728)				$ 691.99
10	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 60.31
11	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
12	W11229610		Door Gasket, Magnetic (black)   (Replaces: W10667843)			Immediately	$ 300.69
13	W11106290		Trim, Shelf Door   (Replaces: W10719701)			Immediately	$ 127.34
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
18	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 50.33
19	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
1A	LW10798950		Refrigerator Door (includes Door Gasket & Door Handle) (stainless)   (Replaces: W10798950)				$ 840.07
2A	W10631993		Handle, Cup (grey)		Appelez-nous	-
9A	LW10798951		Freezer Door (includes Door Gasket & Door Handle) (stainless)   (Replaces: W10798951)				$ 822.21
