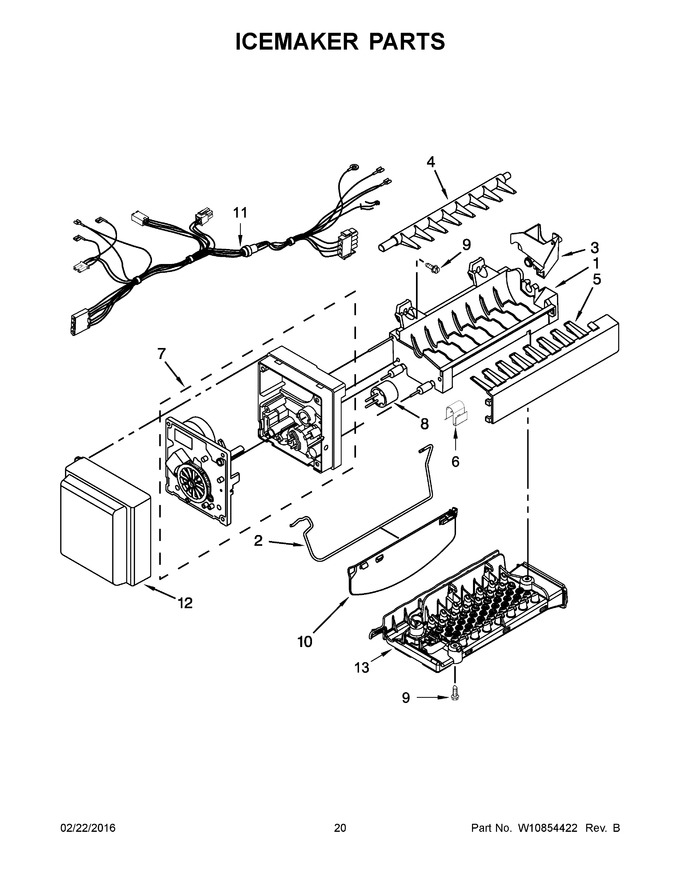

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10300025 | Assembly, Mold And Heater (Replaces: W10300025) |
|
Immediately | $ 181.73 | ||||
| 2 | WPW10378254 | Arm, Shutoff (Replaces: W10378254) |
|
$ 71.88 | |||||
| 3 | W10377998 | Cup, Fill |
|
$ 74.73 | |||||
| 4 | W10318914 | Ejector |
|
$ 34.27 | |||||
| 5 | W10788834 | Stripper, Ice (Replaces: W10699925) |
|
$ 76.72 | |||||
| 6 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 7 | W10882923 | Assembly, Module And Motor (Replaces: W10377147) |
|
Immediately | $ 240.36 | ||||
| 8 | WP627985 | Thermostat (Replaces: 627985) |
|
$ 103.18 | |||||
| 9 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 10 | WPW10351019 | Extension, Shutoff Arm (Replaces: W10351019) |
|
$ 76.22 | |||||
| 11 | W11029433 | Harness, Icemaker (Replaces: W10404016) |
|
$ 240.54 | |||||
| 12 | W10460383 | Cover, Front |
|
$ 92.76 | |||||
| 13 | WPW10312691 | Assembly, Impinger (Replaces: W10312691) |
|
$ 330.00 | |||||
| 100 | W10882923 | Assembly, Icemaker (complete) (Replaces: W10377151) |
|
Immediately | $ 240.36 |
