New Model Search:

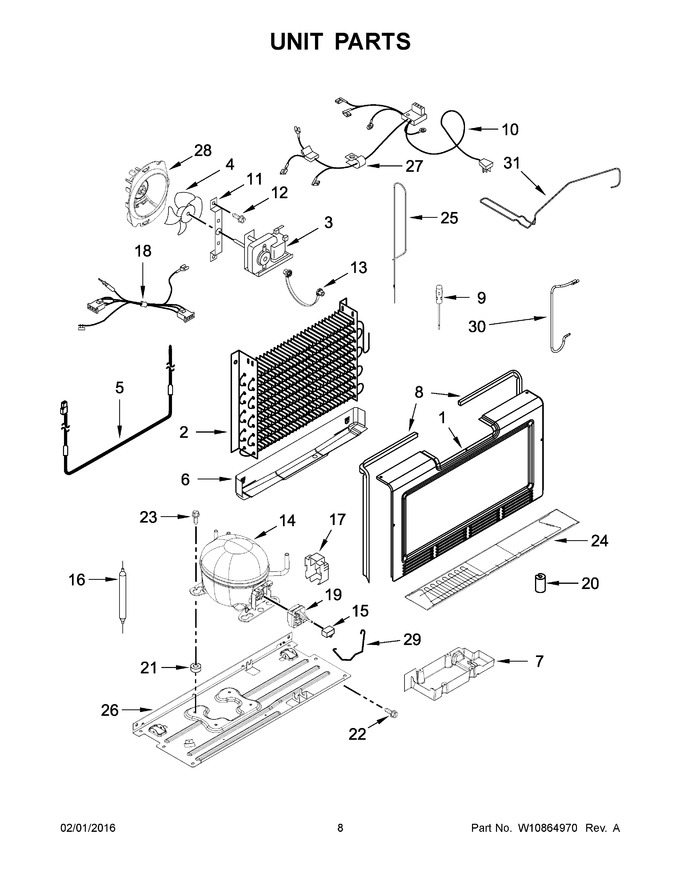

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 124.62 | |||||
| 2 | W11507067 | Evaporator (Replaces: W10574283) |
|
Immediately | $ 209.90 | ||||
| 3 | WPW10359880 | Fan Motor (Replaces: W10359880) |
|
Immediately | $ 68.37 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 5 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 257.91 | ||||
| 6 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 7 | W10574291 | Drain Pan, Evaporator |
|
$ 119.42 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 8.75 | |||||
| 9 | WPW10383615 | Thermistor, Freezer Evaporator (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 10 | W10622169 | Wire Harness (includes Power Cord) |
|
$ 111.36 | |||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | W11233072 | Screw (Replaces: 3-80732-014) |
|
Immediately | $ 14.72 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 8.31 | |||||
| 14 | W10233961 | Compressor (Replaces: W10591712) |
|
$ 643.40 | |||||
| 15 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 16 | WPW10143759 | Drier (Replaces: W10709968) |
|
Immediately | $ 30.78 | ||||
| 17 | W10574450 | Shield, Capacitor |
|
$ 34.22 | |||||
| 18 | W11244436 | Harness, Evaporator Fan (Replaces: W10693200) |
|
$ 140.89 | |||||
| 19 | W10873801 | Device, Start (Replaces: W10796752) |
|
Immediately | $ 92.02 | ||||
| 20 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 21 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 22 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| 23 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 24 | W10682881 | Condenser |
|
- | |||||
| 25 | W10574281 | Exchanger, Heat |
|
- | |||||
| 26 | W10574278 | Pan, Compressor |
|
$ 140.77 | |||||
| 27 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 37.86 | |||||
| 29 | W10574470 | Bale Strap |
|
$ 19.57 | |||||
| 30 | W10574571 | Suction Tube |
|
$ 109.52 | |||||
| 31 | W10574478 | Discharge Tube |
|
$ 123.99 | |||||
| NI | N/P | Refrigerant Charge 3.5 Oz (r-134) |
|
- |
