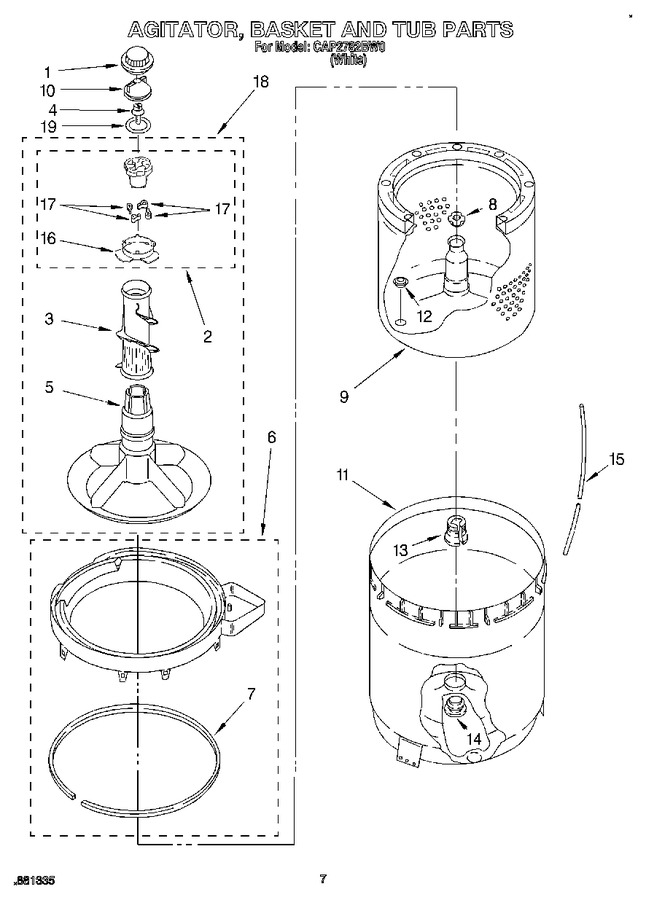

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 3355758) |
|
Immediately | $ 9.00 | ||||
| 2 | 285811 | Cam Driven Short (Replaces: 3363663) |
|
Immediately | $ 32.59 | ||||
| 3 | WP3363003 | Clothes Mover (Replaces: 3363003) |
|
Immediately | $ 257.52 | ||||
| 4 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 8.86 | ||||
| 5 | WP3347288 | Agitator (Replaces: 3347288) |
|
Immediately | $ 137.84 | ||||
| 6 | W10880720 | Tub Ring (Replaces: 63851) |
|
Immediately | $ 233.34 | ||||
| 7 | WP3976308 | Gasket, Tub Ring (Replaces: 3359585) |
|
Immediately | $ 29.66 | ||||
| 8 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 11.56 | ||||
| 9 | W10389328 | Basket (Replaces: 64217) |
|
$ 424.81 | |||||
| 10 | WPW10074580 | Cap, Barrier (Replaces: 3347290) |
|
Immediately | $ 13.02 | ||||
| 11 | 63849 | Tub |
|
$ 306.29 | |||||
| 12 | 3352284 | Snap-in-plug |
|
- | |||||
| 13 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 14 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 15 | WP353244 | Hose, Pressure Switch (Replaces: 386757) |
|
Immediately | $ 59.93 | ||||
| 16 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 8.23 | |||||
| 17 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 18 | 285565 | Agitator, Asy (complete) (Replaces: 3946501) |
|
Immediately | $ 259.89 | ||||
| 19 | WPW10072840 | Seal-inner Cap (Replaces: 3348855) |
|
Immediately | $ 8.72 |
