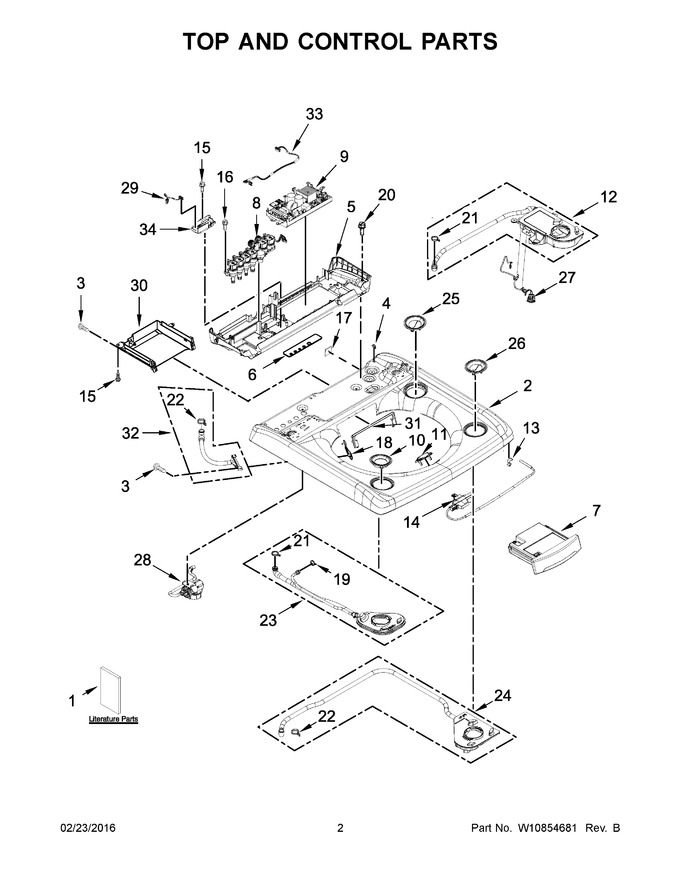

02 - Top And Control Parts
03 - Lid And Cabinet Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10746390 | Tech Sheet |
|
- | |||||
| 2 | W10747118 | Top (white) |
|
- | |||||
| 3 | W11700520 | Screw (Replaces: 3400061) |
|
$ 14.28 | |||||
| 4 | W10711050 | Grommet, Screw |
|
- | |||||
| 5 | W10692511 | Tray Assembly, Lower Rear |
|
- | |||||
| 6 | W10481887 | Seal Pad, Water Valve |
|
- | |||||
| 7 | W10727780 | Drawer Assembly, Bulk Dispenser (white) |
|
- | |||||
| 8 | W11188329 | Valve Assembly (4 Port) (Replaces: W10465981) |
|
$ 367.84 | |||||
| 9 | W10857120 | Control Unit (Replaces: W10815489) |
|
- | |||||
| 10 | W10712200 | Bezel, Detergent Dispenser (white) |
|
- | |||||
| 11 | W10687095 | Bezel, Lid Lock (white) |
|
$ 29.84 | |||||
| 12 | W10749370 | Dispenser Assembly, Stain Remover (white) |
|
$ 109.01 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 14 | W11188327 | Assembly, Lid Lock (Replaces: W10727693) |
|
Immediately | $ 265.39 | ||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 17 | W10161707 | Top, Foam Seal |
|
- | |||||
| 18 | W10749369 | Bezel, Fresh Fill (white) |
|
- | |||||
| 19 | WP596669 | Clamp, Hose (Replaces: 8318495) |
|
Immediately | $ 8.82 | ||||
| 20 | WP273556 | Screw (Replaces: 3387485) |
|
Immediately | $ 8.43 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 22 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 23 | W11290649 | Dispenser Assembly, Detergent (white) (Replaces: W10749380) |
|
- | |||||
| 24 | W11747575 | Dispenser Assembly, Fabric Softener (white) (Replaces: W10749366) |
|
$ 110.72 | |||||
| 25 | W10712204 | Bezel, Bleach Dispenser (white) |
|
$ 30.62 | |||||
| 26 | W10712202 | Bezel, Fabric Softener Dispenser (white) |
|
$ 30.29 | |||||
| 27 | W11553311 | Light Assembly, Basket (Replaces: W10591941) |
|
$ 33.26 | |||||
| 28 | W10712195 | Pump Assembly, Metering |
|
- | |||||
| 29 | W10530673 | Harness, Bulk Dispenser |
|
- | |||||
| 30 | W10749375 | Housing, Dispenser (white) |
|
- | |||||
| 31 | W10727778 | Bezel, Dispenser (white) |
|
- | |||||
| 32 | W10749373 | Nozzle Assembly, Fresh Fill |
|
- | |||||
| 33 | W10767476 | Harness, Relay Expansion |
|
- | |||||
| 34 | W10901873 | Relay Expansion Board (Replaces: W10582445) |
|
- | |||||
| 10A | W10749749 | Bezel, Detergent Dispenser (grey) |
|
$ 30.59 | |||||
| 11A | W10747826 | Bezel, Lid Lock (grey) |
|
$ 24.94 | |||||
| 12A | W10749756 | Dispenser Assembly, Stain Remover (grey) |
|
$ 114.81 | |||||
| 18A | W10749765 | Bezel, Fresh Fill (grey) |
|
- | |||||
| 1A | W10754826 | Installation Instructions |
|
- | |||||
| 1B | W10852951 | Owners Manual |
|
- | |||||
| 1C | W10754829 | Energy Guide |
|
- | |||||
| 1D | W10816481 | Quick Start Guide |
|
- | |||||
| 23A | W11290634 | Dispenser Assembly, Detergent (grey) (Replaces: W10749760) |
|
- | |||||
| 24A | W11678129 | Dispenser Assembly, Fabric Softener (grey) (Replaces: W10749753) |
|
$ 125.39 | |||||
| 25A | W10749769 | Bezel, Bleach Dispenser (grey) |
|
$ 30.64 | |||||
| 26A | W10749759 | Bezel, Fabric Softener Dispenser (grey) |
|
- | |||||
| 2A | W10747119 | Top (chrome Shadow) |
|
- | |||||
| 30A | W10749762 | Housing, Dispenser (grey) |
|
- | |||||
| 31A | W10749382 | Bezel, Dispenser (grey) |
|
- | |||||
| 7A | W10749767 | Drawer Assembly, Bulk Dispenser (grey) |
|
- |
