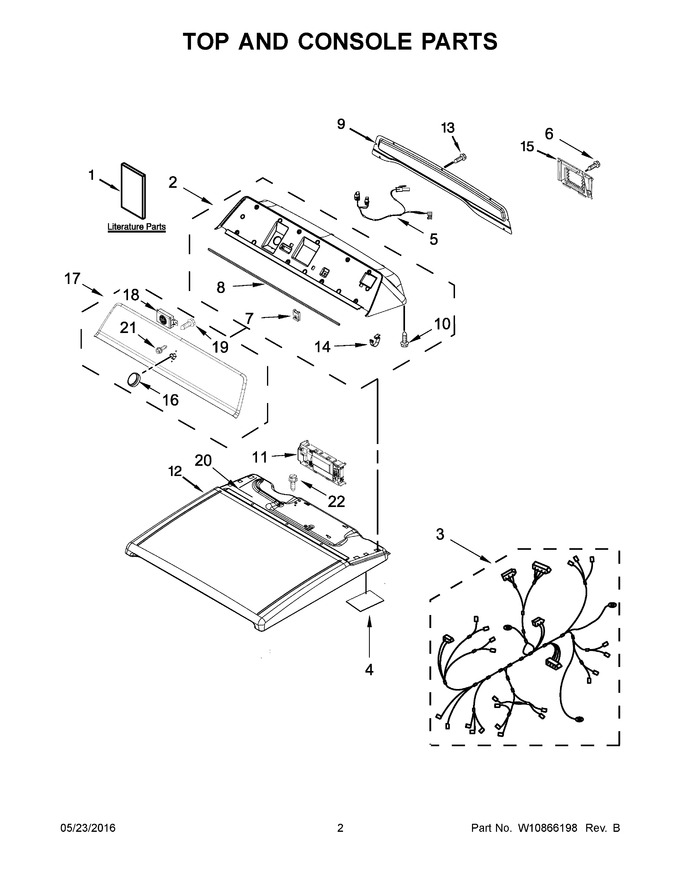

SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11026442		Assembly, Console (white)   (Replaces: W10622102)			Immediately	$ 615.11
3	W10777438		Wiring Harness, Main		Appelez-nous	-
4	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 30.95
5	W10849059		Harness, User Interface   (Replaces: W10788429)				$ 184.59
6	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	W10833000		Control, Electronic   (Replaces: W10793299)				$ 410.57
12	W11227373		Top (white)   (Replaces: W10508981)				$ 255.61
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 104.04
16	W10853910		Knob, Timer (dryer) (chrome)   (Replaces: W10727011)				$ 53.94
17	W10849061		Fascia   (Replaces: W10740703)				$ 813.41
18	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
19	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
20	W10185554		Foam, Top		Appelez-nous	-
21	WP9740849		Screw   (Replaces: 9740849)				$ 7.30
22	W10850756		Screw   (Replaces: 8533974)				$ 8.20
12A	W11051477		Top (chrome Shadow)   (Replaces: W10701018)				$ 358.85
1A	W10680141		Use And Care Guide		Appelez-nous	-
1B	W10777449		Tech Sheet		Appelez-nous	-
2A	W10682013		Assembly, Console (chrome Shadow)				$ 381.03
