01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)

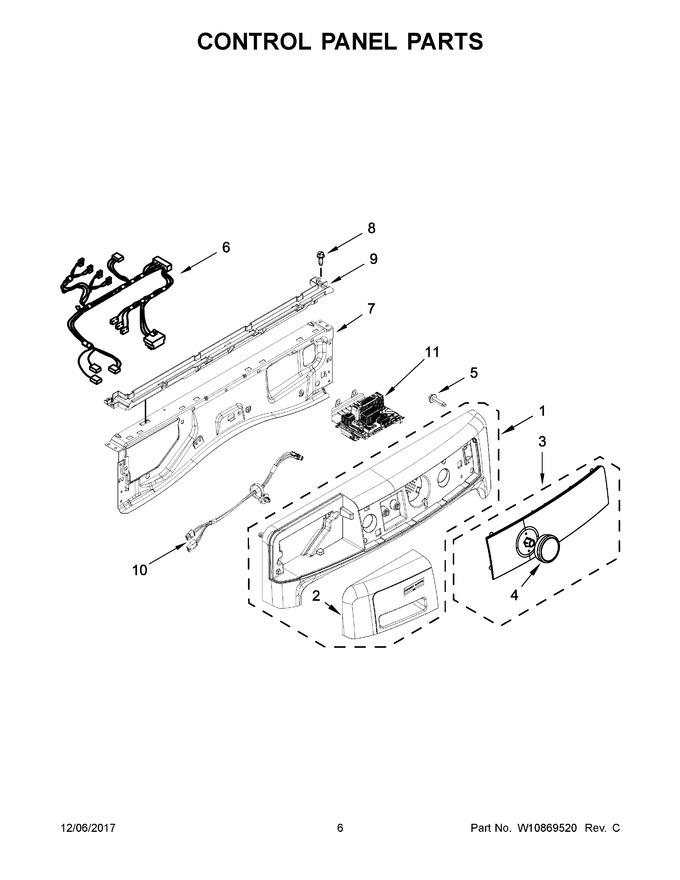

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11218376		Assembly, Console (white)   (Replaces: W10784655)				$ 388.49
2	W11254812		Handle, Drawer (white)   (Replaces: W10784654)				$ 110.78
3	W10911043		Assembly, Iml (white)   (Replaces: W10825106)				$ 668.06
3	W10911043		Assembly, Iml (white)   (Replaces: W10754966)				$ 668.06
4	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 53.94
5	W10489172		Screw				$ 11.98
6	W11033849		Harness, Main (upper)   (Replaces: W10751132)				$ 175.60
7	W10208197		Bracket, Console				$ 174.54
8	WP489464		Screw   (Replaces: W10142290)			Immediately	$ 8.38
9	W11172160		Channel, Water   (Replaces: W10796900)				$ 71.25
9	WPW10653575		Channel, Water   (Replaces: W10653575)				$ 90.94
10	W10580186		Harness, Ui				$ 40.80
11	W10885572		Control Unit, Appliance				$ 470.26
11	W10842080		Control Unit, Appliance		Appelez-nous	-
1A	W10783707		Assembly, Console (chrome Shadow)				$ 306.34
2A	W10783705		Handle, Drawer (chrome Shadow)				$ 66.44
3A	W10911045		Assembly, Iml (chrome Shadow)   (Replaces: W10825108)				$ 650.10
3A	W10911045		Assembly, Iml (chrome Shadow)   (Replaces: W10754967)				$ 650.10
