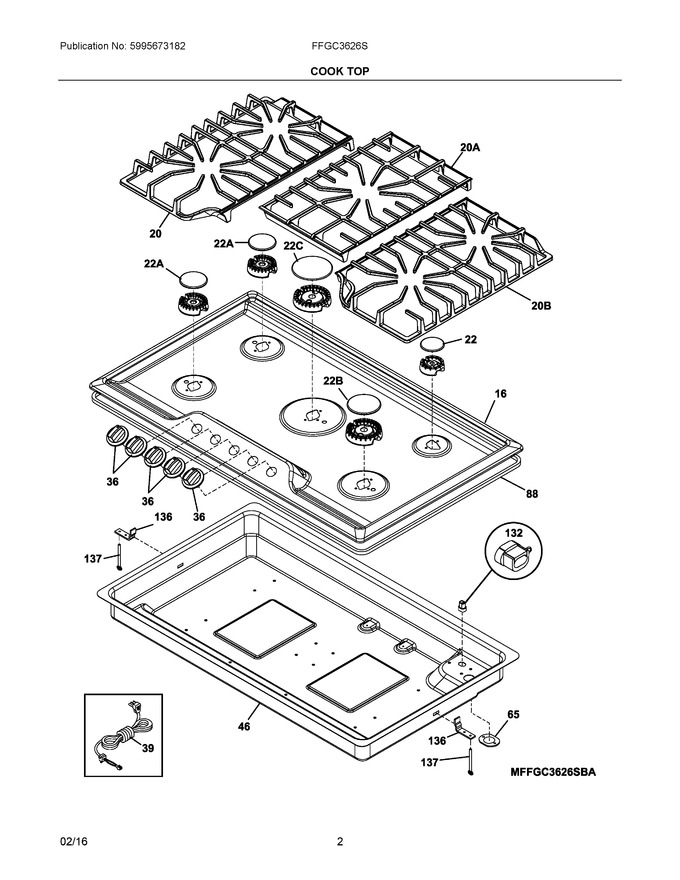

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	809218331		Main Top, Assembly, Stainless		Appelez-nous	-
20	5304504845		Grate, Burner, Black, Lh		Appelez-nous	-
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
36	5304504839		Knob, Burner, Stainless		Appelez-nous	-
39	305574902		Power Cord, Electrical, Supply				$ 77.18
46	5304498877		Burner Box		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 12.60
88	5304498879		Gasket, Main Top				$ 127.81
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 10.11
136	318264301		Support, Box, (2)				$ 47.72
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 13.55
20A	5304504844		Grate, Burner, Black, Center		Appelez-nous	-
20B	5304504843		Grate, Burner, Black, Rh		Appelez-nous	-
22A	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 54.94
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	305338601		Screw, (2)				$ 4.73
NI	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 13.48
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
