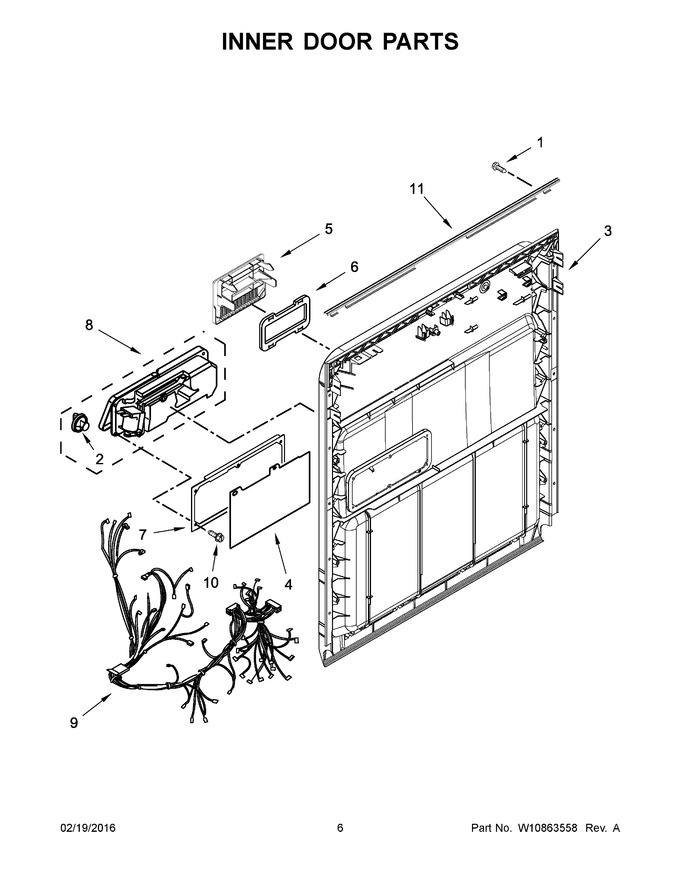

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 8.41 | ||||
| 2 | WPW10524922 | Cap, Rinse Aid (Replaces: W10524922) |
|
$ 49.58 | |||||
| 3 | WPW10254547 | Inner Door Assembly (also Order Item 6) (Replaces: W10254547) |
|
$ 275.73 | |||||
| 4 | WPW10482094 | Cover, Dispenser (Replaces: W10482094) |
|
Immediately | $ 32.36 | ||||
| 5 | WPW10254548 | Deflector, Vent (also Order Item 6) (Replaces: W10254548) |
|
$ 73.14 | |||||
| 6 | WPW10254545 | Gasket, Vent (Replaces: W10254545) |
|
$ 12.19 | |||||
| 7 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 37.79 | |||||
| 8 | WPW10428214 | Dispenser Assembly (Replaces: W10428214) |
|
$ 189.61 | |||||
| 9 | W10655806 | Wiring Harness |
|
$ 261.71 | |||||
| 10 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 11 | WP8269296 | Seal, Door/console (Replaces: 8269296) |
|
Immediately | $ 188.17 |
