View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts

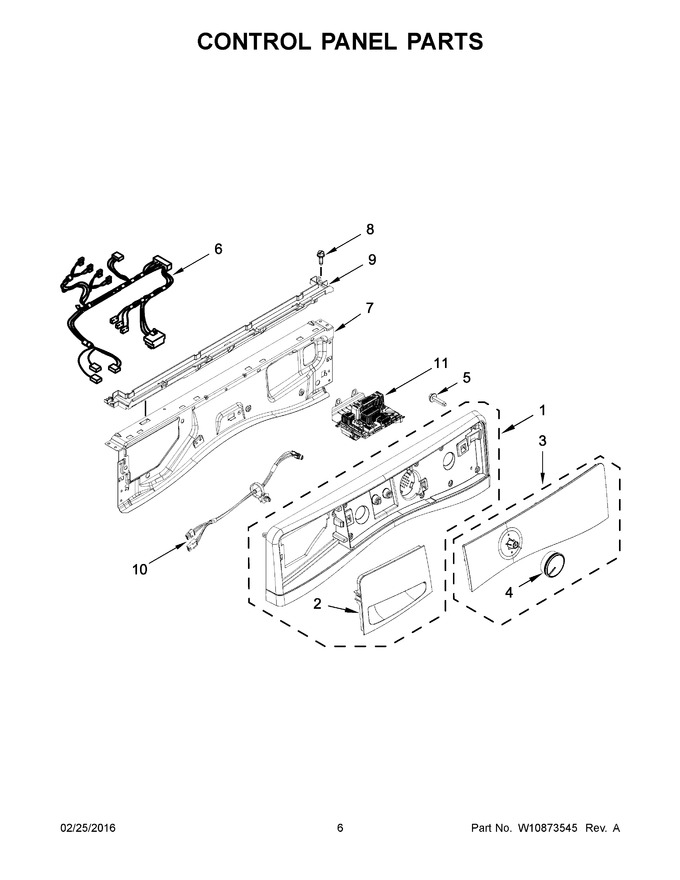

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11218392 | Assembly, Console (white) (Replaces: W10784612) |
|
$ 371.74 | |||||
| 2 | W11223724 | Handle, Drawer (white) (Replaces: W10783722) |
|
$ 84.39 | |||||
| 3 | W11213904 | Assembly, Iml (white) (Replaces: W10783668) |
|
$ 652.19 | |||||
| 4 | W10875909 | Assembly, Timer Knob (white) (Replaces: W10783726) |
|
Immediately | $ 52.99 | ||||
| 5 | W10589828 | Screw |
|
$ 15.29 | |||||
| 6 | W10685628 | Harness, Main (upper) |
|
$ 163.70 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10653575) |
|
$ 90.94 | |||||
| 10 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 28.54 | |||||
| 11 | W11201287 | Control Unit, Appliance (Replaces: W10849751) |
|
Immediately | $ 570.17 | ||||
| 1A | W10784614 | Assembly, Console (chrome Shadow) |
|
$ 353.43 | |||||
| 2A | W10783724 | Handle, Drawer (chrome Shadow) |
|
$ 109.18 | |||||
| 3A | W11213905 | Assembly, Iml (chrome Shadow) (Replaces: W10783669) |
|
$ 690.94 |
