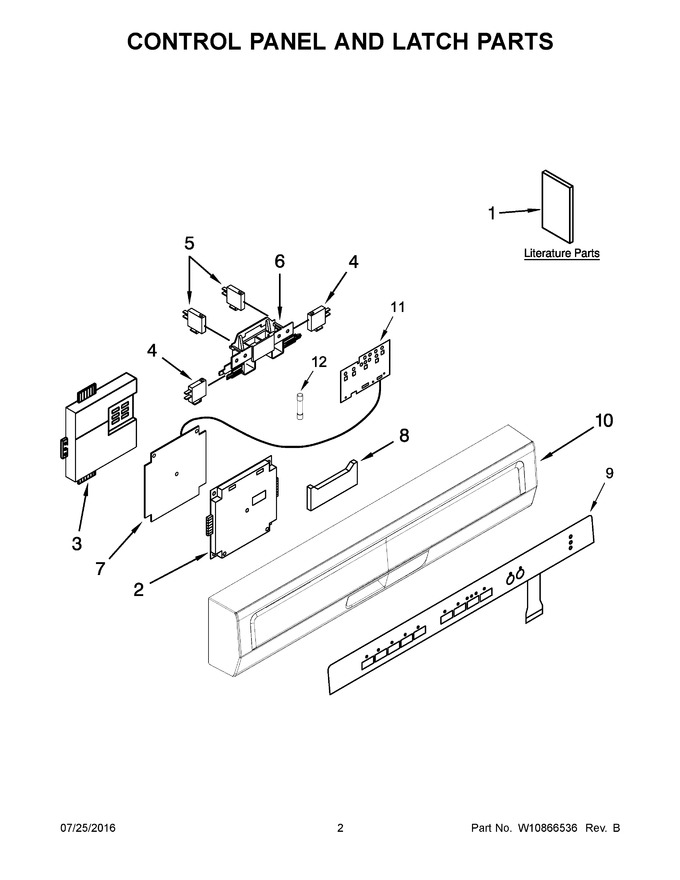

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10837341		Use & Care Guide		Appelez-nous	-
2	W10567674		Cover, Control		Appelez-nous	-
3	W10567584		Base, Control Main				$ 30.79
4	W10859566		Microswitch   (Replaces: W10567585)				$ 29.97
5	WPW10567586		Switch, Breakwater (left)   (Replaces: W10567586)				$ 62.97
6	W10567588		Bolt, Latch				$ 40.96
7	W10869122		Control, Electronic		Appelez-nous	-
8	W10567590		Handle		Appelez-nous	-
9	W10869127		Overlay (white)				$ 275.11
10	WPW10567678		Console (black)   (Replaces: W10567678)				$ 199.77
11	W10875017		Control, Small   (Replaces: W10869123)			Immediately	$ 283.45
12	W10487251		Fuse				$ 27.35
10A	WPW10567676		Console (white)   (Replaces: W10567676)				$ 199.77
10B	W10567679		Console (stainless)				$ 143.06
5A	W10567587		Switch, Breakwater (right)				$ 40.68
9A	W10869128		Overlay (black)				$ 307.34
9B	W10869129		Overlay (stainless)				$ 331.98
