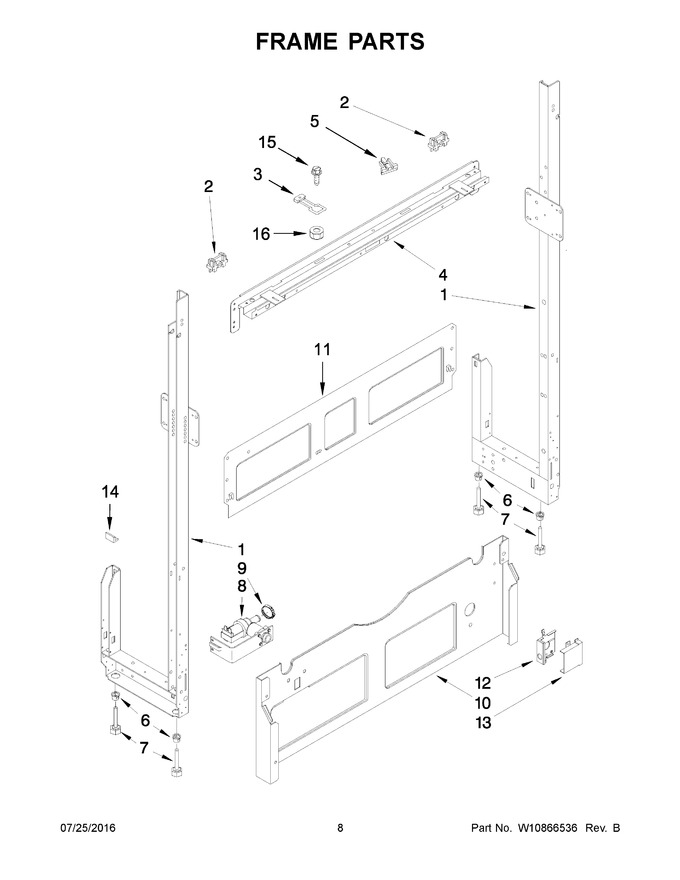

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10717691		Frame, Uprights (left Hand)		Appelez-nous	-
2	W10567500		Block (black)		Appelez-nous	-
3	W10567501		Latch				$ 28.24
4	W10567701		Brace, Upper (black)		Appelez-nous	-
5	W10567699		Block, Coupling				$ 24.31
6	W10567574		Nut, Leveling Leg				$ 12.22
7	W10567573		Leg, Leveling				$ 13.50
8	W10875007		Water Valve   (Replaces: W10868360)				$ 154.94
9	W10567670		Clamp		Appelez-nous	-
10	W10567716		Brace, Lower		Appelez-nous	-
11	W10567717		Brace, Lower Rear		Appelez-nous	-
12	W10567566		Cover, Terminal Box		Appelez-nous	-
13	WPW10567567		Box, Terminal   (Replaces: W10567567)				$ 22.82
14	W10567718		Support, Tub		Appelez-nous	-
15	W10852388		Screw				$ 12.83
16	W10852389		Nut				$ 21.97
1A	WPW10567702		Frame, Uprights (right Hand)   (Replaces: W10567702)				$ 138.08
2A	W10567499		Block (white)		Appelez-nous	-
4A	W10567700		Brace, Upper (white)		Appelez-nous	-
