SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Optional Parts (not Included)

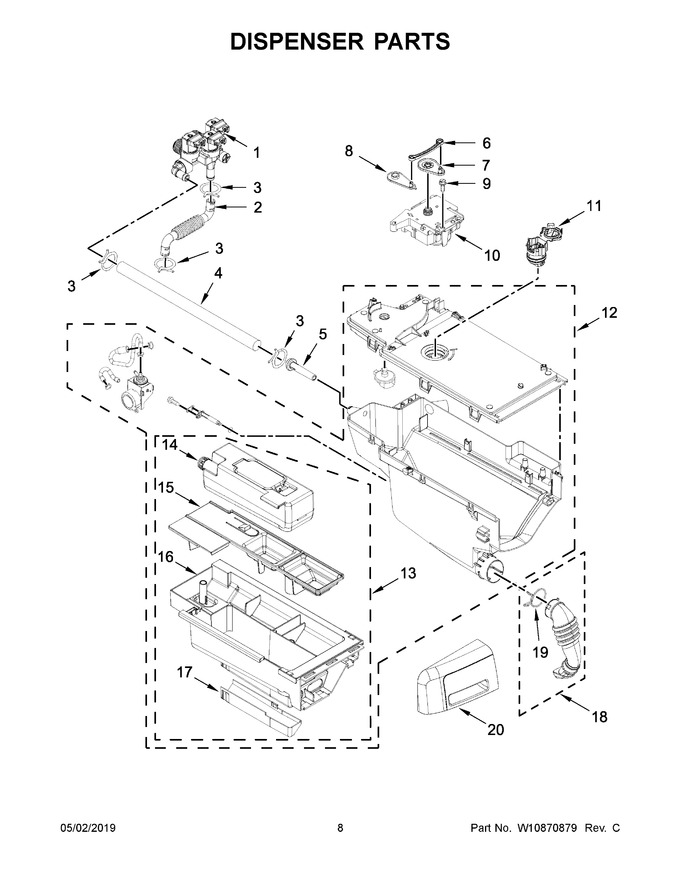

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10247306		Valve, Inlet   (Replaces: W10513404)			Immediately	$ 167.78
2	W10239949		Hose, Inlet Valve To Active Vent				$ 43.27
3	WP596669		Clamp, Hose   (Replaces: W10096852)			Immediately	$ 8.40
4	W10744048		Hose, Pressure		Appelez-nous	-
5	WP8183181		Nozzle, Inlet   (Replaces: 461970803531)				$ 90.30
6	WP8183183		Lever, Connection   (Replaces: 461970226571)				$ 90.23
7	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 90.23
8	W10183517		Lever, Water Distribution				$ 9.94
9	WP8540282		Screw   (Replaces: 8540282)				$ 11.56
10	WPW10352973		Actuator   (Replaces: W10163975)			Immediately	$ 134.69
11	W11096092		Sensor-magnetic, Angular   (Replaces: W11027727)				$ 84.75
12	W10862190		Housing, Dispenser Assembly   (Replaces: W10817720)				$ 367.31
13	WPW10250742		Drawer, Detergent (complete)   (Replaces: W10250742)				$ 196.55
14	W10250743A		Dispenser, Minibulk Cartridge   (Replaces: W10250743)			Immediately	$ 66.49
15	W10256661		Siphon, Bleach/softener				$ 116.94
16	WPW10250723		Drawer, Detergent   (Replaces: W10250723)				$ 162.37
17	W10003140		Cover, Detergent Drawer				$ 85.63
18	WPW10239966		Hose, Dispenser To Bellow   (Replaces: W10239966)				$ 82.95
19	W10239910		Clamp, Hose			Immediately	$ 59.43
20	W10784645		Handle, Drawer (white)				$ 71.23
20A	W10784647		Handle, Drawer (chrome Shadow)				$ 145.27
20B	W10784648		Handle, Drawer (black)				$ 153.68

    View Diagram in Separate Window       Print Part List
