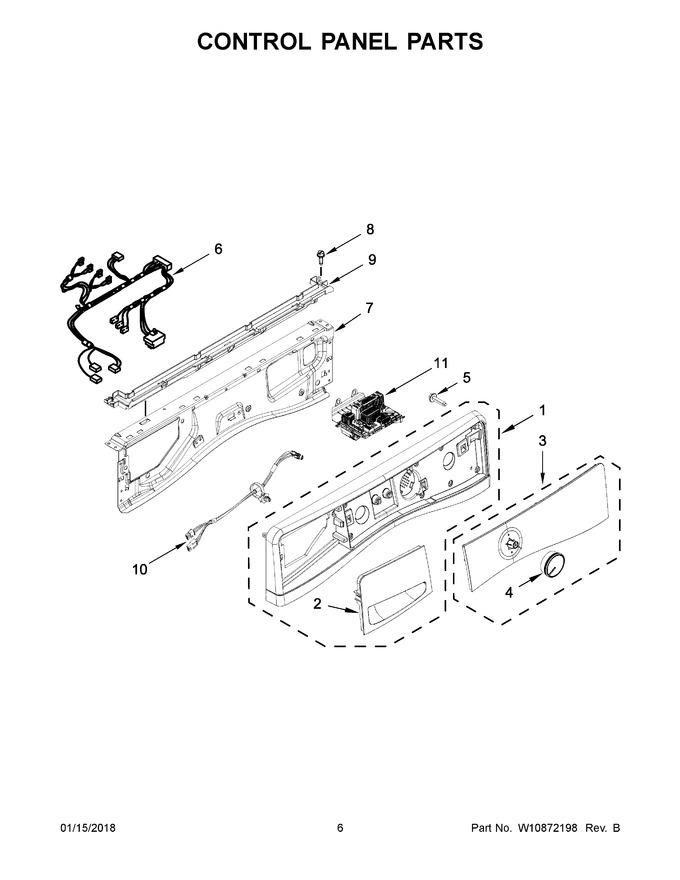

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11218415 | Assembly, Console (white) (Replaces: W10784649) |
|
- | |||||
| 2 | W10784645 | Handle, Drawer (white) |
|
$ 74.79 | |||||
| 3 | W10911023 | Assembly, Iml (white) (Replaces: W10825111) |
|
Immediately | $ 435.08 | ||||
| 4 | W10875909 | Assembly, Timer Knob (chrome) (Replaces: W10783726) |
|
Immediately | $ 52.99 | ||||
| 5 | W10589828 | Screw |
|
$ 15.29 | |||||
| 6 | W11033849 | Harness, Main (upper) (Replaces: W10751132) |
|
$ 175.60 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 9 | W11172160 | Channel, Water (Replaces: W10796900) |
|
$ 71.25 | |||||
| 10 | W10580186 | Harness, Ui |
|
$ 40.80 | |||||
| 11 | W11184031 | Control Unit, Appliance |
|
$ 485.98 | |||||
| 1A | W10784651 | Assembly, Console (chrome Shadow) |
|
$ 372.27 | |||||
| 1B | W10784652 | Assembly, Console (black) |
|
$ 388.92 | |||||
| 1C | W10784650 | Assembly, Console (silver) |
|
$ 379.84 | |||||
| 2A | W10784647 | Handle, Drawer (chrome Shadow) |
|
$ 152.53 | |||||
| 2B | W10784648 | Handle, Drawer (black) |
|
$ 161.36 | |||||
| 2C | W10784646 | Handle, Drawer (silver) |
|
- | |||||
| 3A | W10911024 | Assembly, Iml (chrome Shadow) (Replaces: W10825112) |
|
$ 463.41 | |||||
| 3B | W10911029 | Assembly, Iml (black) (Replaces: W10825114) |
|
- | |||||
| 3C | W10911026 | Assembly, Iml (silver) (Replaces: W10825113) |
|
$ 655.46 |
