SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet And Door Parts

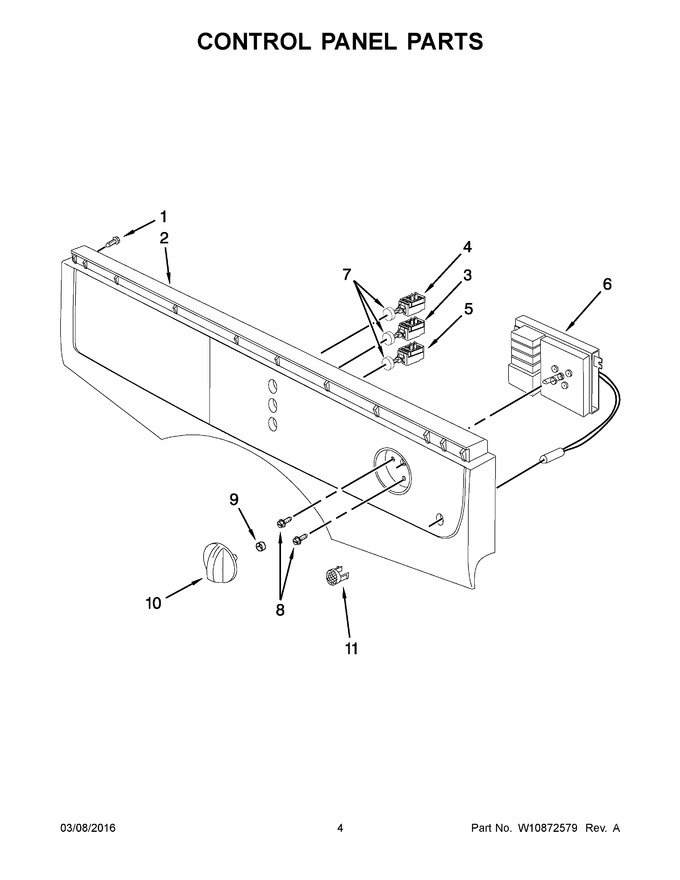

03 - Control Panel Parts
04 - Drum And Motor Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 8182338) |
|
Immediately | $ 14.72 | ||||
| 2 | W10625692 | Panel, Control |
|
- | |||||
| 3 | W10119105 | Switch & Button Assembly (temperature) |
|
$ 147.70 | |||||
| 4 | 8182576 | Switch & Button Assembly (start) |
|
- | |||||
| 5 | WP8182395 | Switch & Button Assembly (on/off) (Replaces: W10119104) |
|
Immediately | $ 146.71 | ||||
| 6 | WPW10404695 | Timer & Indicator Light Assembly (indicator Light Not Servcied Seperately) (Replaces: W10625442) |
|
$ 471.69 | |||||
| 7 | 8182575 | Button, Push |
|
$ 30.77 | |||||
| 8 | W11245710 | Screw (Replaces: 8182323) |
|
Immediately | $ 14.75 | ||||
| 9 | WP8182361 | Spring, Knob (Replaces: 8182361) |
|
$ 143.38 | |||||
| 10 | W10233963 | Knob (Replaces: W10205136) |
|
Immediately | $ 101.37 | ||||
| 11 | 8182532 | Lens, Indicator |
|
$ 100.04 |
