01 - Cover Sheet
02 - Cabinet And Door Parts
03 - Control Panel Parts

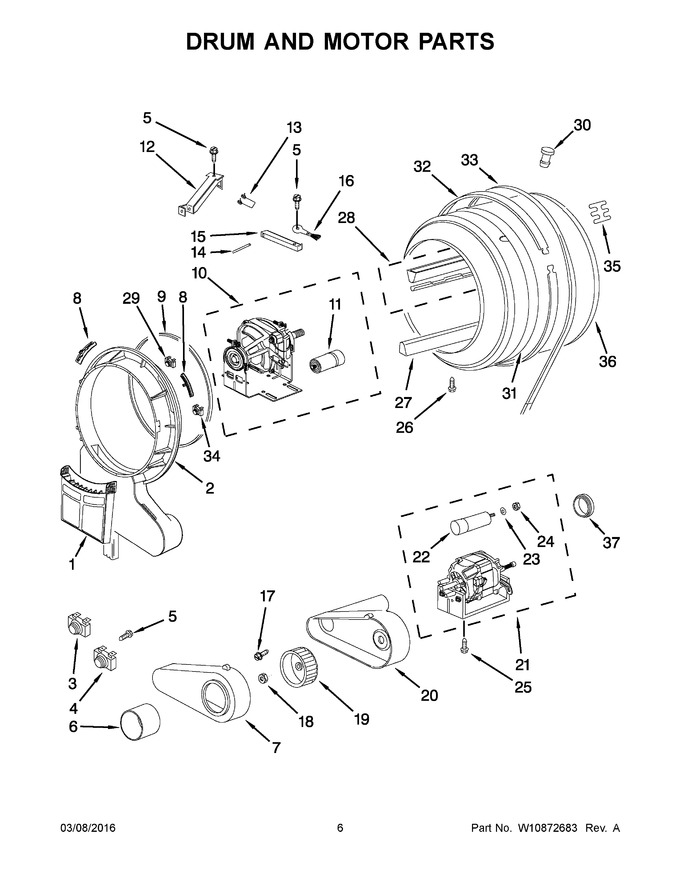

04 - Drum And Motor Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8182489 | Filter, Screen |
|
$ 170.96 | |||||
| 2 | W10870285 | Bulkhead, Front |
|
- | |||||
| 3 | WP8182470 | Thermostat, 203f (95c) (Replaces: 8182470) |
|
$ 141.84 | |||||
| 4 | WP8182477 | Thermostat, Operating 122f (Replaces: 8182477) |
|
Immediately | $ 158.73 | ||||
| 5 | W11245710 | Screw (Replaces: 8182323) |
|
Immediately | $ 14.75 | ||||
| 6 | 8182478 | Extension, Housing |
|
$ 105.77 | |||||
| 7 | WPW10238692 | Housing, Outer (Replaces: W10238692) |
|
$ 287.98 | |||||
| 8 | W10119103 | Insert Pad, Drum Seal |
|
$ 260.20 | |||||
| 9 | 8182692 | Seal, Front Drum |
|
$ 181.43 | |||||
| 10 | 8182471 | Drive Motor |
|
$ 280.74 | |||||
| 11 | N/P | Capacitor (part Not A Serviceable Item) |
|
- | |||||
| 12 | 8182499 | Support, Arm (brush) |
|
- | |||||
| 13 | W10873385 | Spring, Arm (Replaces: 8182494) |
|
- | |||||
| 14 | 8182501 | Pin, Arm |
|
- | |||||
| 15 | 8182498 | Arm, Brush Holder |
|
$ 53.05 | |||||
| 16 | 8182500 | Brush, Detector |
|
$ 128.62 | |||||
| 17 | 8182458 | Screw, Ground |
|
$ 41.56 | |||||
| 18 | 8182739 | Nut, Blower Wheel (Replaces: 8182539) |
|
$ 352.98 | |||||
| 19 | WP8182538 | Blower Wheel (Replaces: 8182538) |
|
$ 283.50 | |||||
| 20 | W10238691 | Housing, Inner |
|
$ 343.40 | |||||
| 21 | WP8182472 | Blower Motor Assembly (Replaces: 8182472) |
|
Immediately | $ 456.47 | ||||
| 22 | W11105120 | Capacitor (Replaces: 8182473) |
|
$ 373.67 | |||||
| 23 | 8182580 | Washer, Capacitor |
|
- | |||||
| 24 | 8182579 | Nut, Capacitor |
|
- | |||||
| 25 | WP22002933 | Screw, Motor (Replaces: 8182427) |
|
$ 8.06 | |||||
| 26 | 8182488 | Screw, Baffle |
|
- | |||||
| 27 | 8182483 | Baffle (no Steel Strip) |
|
$ 214.50 | |||||
| 28 | 8183113 | Baffle (with Steel Strip) |
|
$ 308.96 | |||||
| 29 | W10870283 | Thermostat, (nc) (90c) |
|
$ 356.46 | |||||
| 30 | 8183103 | Plug, Probe |
|
- | |||||
| 31 | 8182497 | Band, Insulation |
|
- | |||||
| 32 | 8182496 | Band, Steel |
|
- | |||||
| 33 | 8182481 | Belt, Drive |
|
$ 75.51 | |||||
| 34 | W10870284 | Thermostat, (no) (98c) |
|
Immediately | $ 343.07 | ||||
| 35 | 8182493 | Spring Hook (steel Band) |
|
- | |||||
| 36 | WP8182482 | Drum Assembly (Replaces: 8182482) |
|
$ 967.97 | |||||
| 37 | W10296394 | Shield, Exhaust |
|
$ 222.69 |
