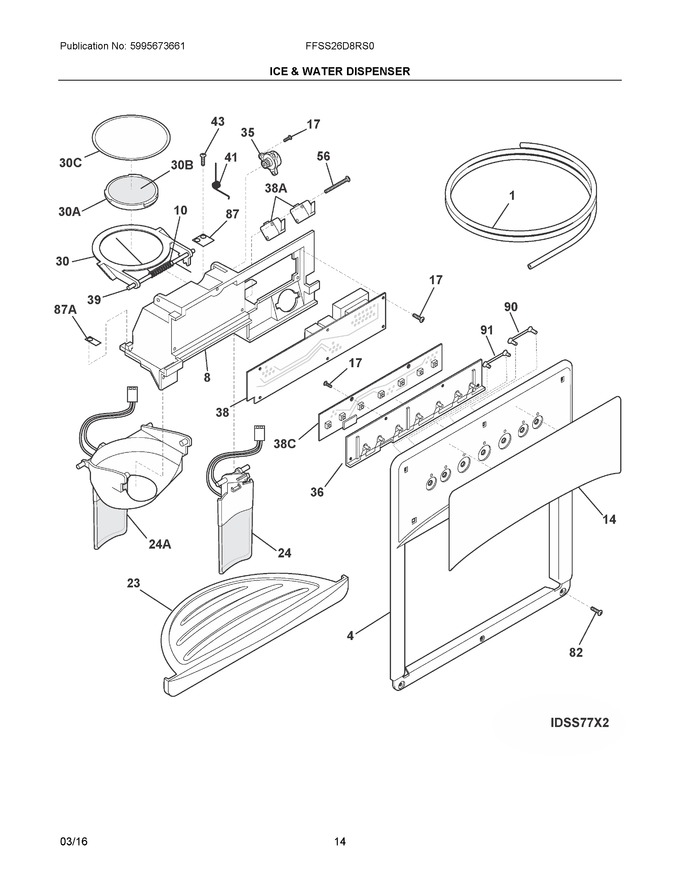

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube, Water, 60", Natural, Door |
|
Immediately | $ 66.94 | ||||
| 4 | 241678703 | Cover-module, Silver Metallic (Replaces: 241678710) |
|
Immediately | $ 83.35 | ||||
| 8 | 241680504 | Module-dispenser |
|
$ 183.65 | |||||
| 10 | 241688901 | Spring-torsion |
|
Immediately | $ 23.63 | ||||
| 14 | 241611218 | Label-module Cover, Silver Metallic |
|
$ 71.30 | |||||
| 17 | 241679801 | Screw |
|
$ 15.75 | |||||
| 23 | 241649003 | Drip Tray, Silver Metallic (Replaces: 241649005) |
|
$ 68.51 | |||||
| 24 | 241685704 | Actuator, Stainless |
|
$ 207.90 | |||||
| 30 | 241688401 | Door Assy-ice Chute |
|
$ 55.13 | |||||
| 35 | 241689301 | Damper-rotary |
|
$ 78.36 | |||||
| 36 | 241680301 | Carrier |
|
$ 40.58 | |||||
| 38 | 241527601 | Board-power |
|
$ 475.24 | |||||
| 39 | 241688801 | Pin-hinge |
|
$ 48.04 | |||||
| 41 | 241689001 | Spring-actuator |
|
$ 24.41 | |||||
| 43 | 215296301 | Screw, Plask H/l, #6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch, Pan Head |
|
$ 14.96 | |||||
| 82 | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 17.69 | ||||
| 87 | 241688302 | Bearing Plate |
|
$ 22.05 | |||||
| 90 | 241680201 | Light Pipe, Reflector, Long |
|
$ 91.40 | |||||
| 91 | 241680101 | Light Pipe, Reflector, Short |
|
$ 60.25 | |||||
| 24A | 241682304 | Actuator-ice, Stainless |
|
$ 257.88 | |||||
| 30A | 241688501 | Door Center |
|
$ 58.85 | |||||
| 30B | 241688601 | Insulation-door |
|
$ 70.19 | |||||
| 30C | 241688701 | Door Seal |
|
$ 44.95 | |||||
| 38A | 241689106 | Switch-micro, Single Pole, Double Throw (Replaces: 241689101) |
|
Immediately | $ 9.56 | ||||
| 38C | 241708307 | Board-control |
|
$ 283.50 | |||||
| 56A | 241689201 | Screw-micro Switch, Pan Head (Replaces: 5304421830) |
|
$ 14.96 | |||||
| 87A | 241688301 | Bearing Plate |
|
$ 22.05 | |||||
| NI | 241686201 | Insulator-electrical |
|
- | |||||
| NI | 218515403 | Clip-grille |
|
$ 32.29 | |||||
| NIA | 218976418 | Tube-water Inlet, Inlet Valve, To Filter |
|
$ 71.66 | |||||
| NIB | 218976419 | Tube-water Inlet, 5/16 - 34", Yellow, Valve To Door |
|
$ 25.20 | |||||
| NIC | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 38.59 | |||||
| NICA | 241680001 | Harness-ribbon Cable |
|
- | |||||
| NID | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561703) |
|
Immediately | $ 22.84 |
