SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts

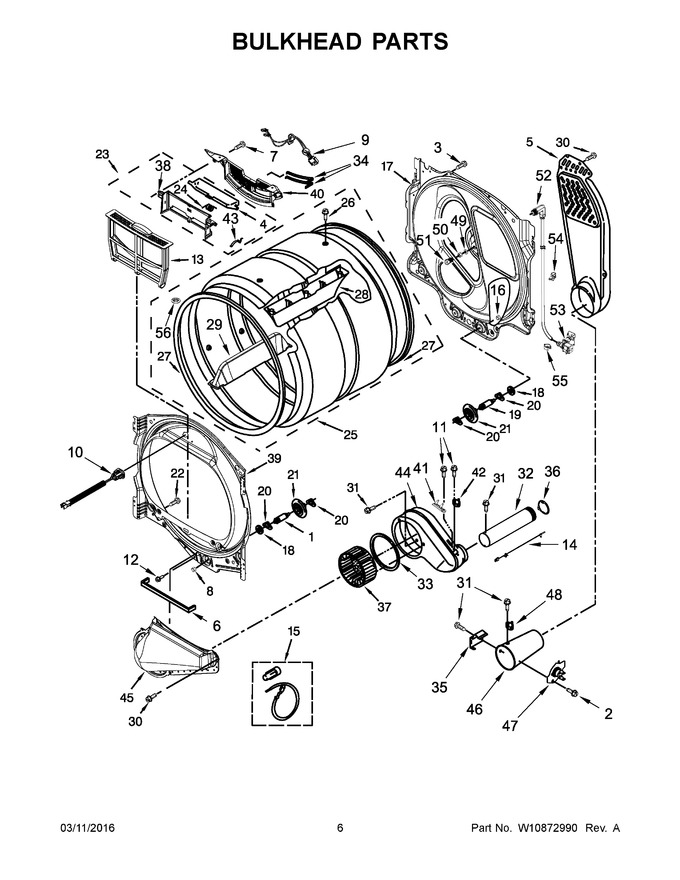

04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, Drum Roller - Right Hand Thread   (Replaces: W10359271)			Immediately	$ 62.21
2	WP489463		Screw   (Replaces: 489463)				$ 7.82
3	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
4	W11242876		Door, Lint Screen   (Replaces: W10608808)				$ 105.01
5	W11129538		Duct, Inlet Assembly   (Replaces: W10834203)				$ 193.39
6	W10701355		Seal, Housing Outlet To Lint Duct		Appelez-nous	-
7	WP3387230		Screw   (Replaces: 3387230)			Immediately	$ 8.54
8	W11812294		Nut, Hex   (Replaces: 3934666)				$ 12.16
9	W11161899		Sensor Jumper, Moisture   (Replaces: W10657328)				$ 15.13
10	WPW10629046		Assembly, Drum Light   (Replaces: W10629046)				$ 79.02
11	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
12	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
13	W10859086		Screen, Lint (white)   (Replaces: W10608811)				$ 71.64
14	W11744013		Thermistor, Gas Inlet   (Replaces: W10651569)		Appelez-nous	-
15	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
16	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 8.49
17	W11135006		Bulkhead, Rear   (Replaces: W10623519)				$ 254.73
18	W11236646		Washer   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, Drum Roller - Left Hand Thread   (Replaces: W10359272)			Immediately	$ 58.48
20	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
22	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.85
23	W11242876		Assembly, Outlet Housing   (Replaces: W10608812)				$ 105.01
24	W11242876		Spring, Lint Screen Door   (Replaces: W10219015)				$ 105.01
25	W10646770		Assembly, Drum			Immediately	$ 244.57
26	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.75
27	W11189144		Seal, Drum   (Replaces: W10664120)				$ 21.61
28	W10767090		Baffle, Drum Low				$ 37.26
29	W10767074		Baffle, Drum High				$ 35.99
30	W10850756		Screw   (Replaces: 8533974)				$ 7.76
31	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
32	W10608817		Pipe, Exhaust				$ 73.41
33	WP697770		Seal, Plate Cover   (Replaces: 697770)			Immediately	$ 7.88
34	W11165163		Sensor, Electrode   (Replaces: W10608814)				$ 94.58
35	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
36	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 81.62
37	WP697772		Wheel, Blower   (Replaces: 697772)			Immediately	$ 59.07
38	W11242876		Housing, Outlet   (Replaces: W10608806)				$ 105.01
39	W10861007		Bulkhead, Front				$ 211.22
40	W10608813		Grille, Outlet				$ 219.19
41	W10909685		Fuse, Thermal (91c)   (Replaces: W10693363)			Immediately	$ 71.42
42	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
43	W10608815		Spring Clip, Lint Screen		Appelez-nous	-
44	W11246350		Housing, Blower   (Replaces: W10667717)			Immediately	$ 90.38
45	W10868982		Assembly, Lint Duct   (Replaces: W10608803)				$ 187.03
46	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 176.47
47	WP8573713		Cut-off, Thermal   (Replaces: 8573713)			Immediately	$ 72.51
48	WP3391912		Thermostat, Hi Limit   (Replaces: 3391912)			Immediately	$ 71.56
49	W10044579		Washer, Nozzle				$ 8.78
50	W10044628		Nut, Brass				$ 92.64
51	W10363169		Nozzle Stream				$ 236.38
52	W10638152		Assembly, Nozzle Body				$ 243.79
53	W11245113		Valve Assembly, Water Inlet   (Replaces: W10595507)				$ 212.84
54	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 31.84
55	W10044599		Clip, Push To Connect				$ 14.29
56	W10665050		Cap, Plug   (Replaces: W10128544)				$ 19.19
