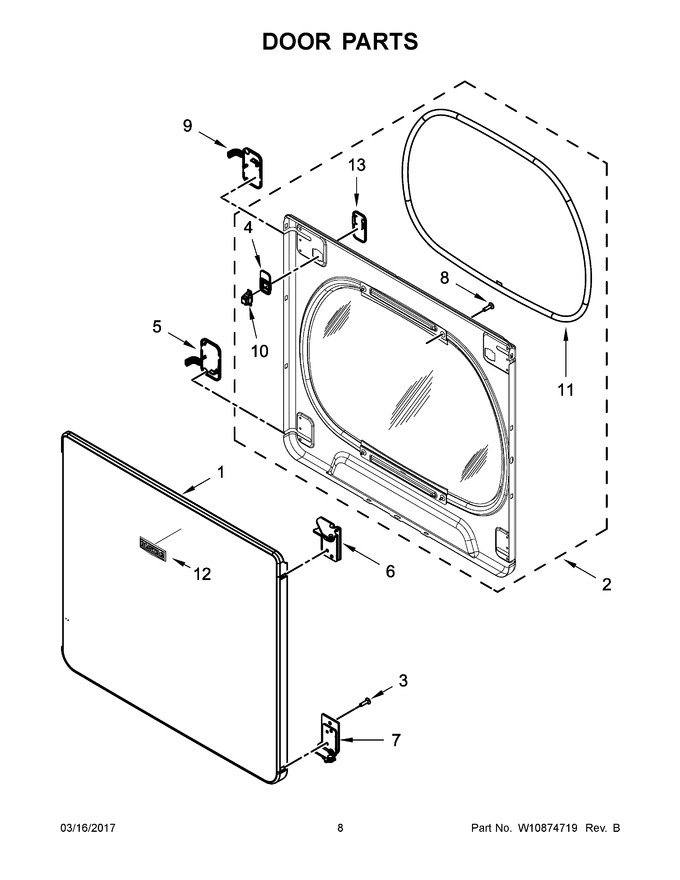

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10669027		Assembly, Outer Door (chrome Shadow)				$ 529.10
2	W10614997		Assembly, Inner Door (white)				$ 261.85
3	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
4	W11103932		Bezel, Door Catch (white)   (Replaces: W10631401)				$ 28.29
5	W10631396		Hinge Cover, Bottom (white)		Appelez-nous	-
6	W10850024		Door, Hinge (upper)   (Replaces: W10783754)				$ 85.53
7	W10850044		Door, Hinge (lower)   (Replaces: W10783755)				$ 85.42
8	WP488627		Screw   (Replaces: 342055)				$ 8.11
9	W10631395		Hinge Cover, Top (white)		Appelez-nous	-
10	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 26.55
11	W10763835		Seal, Door			Immediately	$ 129.79
12	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
13	W10631410		Cover, Door Catch (white)		Appelez-nous	-
13A	W10669024		Cover, Door Catch (chrome Shadow)				$ 25.65
2A	W10615000		Assembly, Inner Door (chrome Shadow)				$ 271.77
4A	W10669023		Bezel, Door Catch (chrome Shadow)				$ 23.64
5A	W10631413		Hinge Cover, Bottom (chrome Shadow)		Appelez-nous	-
9A	W10631412		Hinge Cover, Top (chrome Shadow)				$ 25.76
