SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

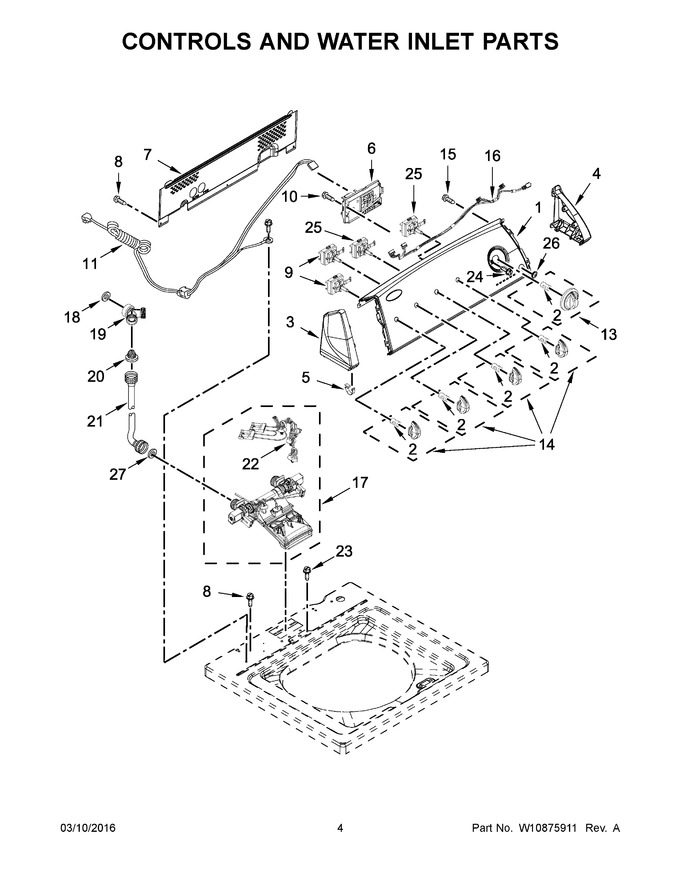

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10365093		Panel, Console   (Replaces: W10365093)				$ 294.63
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8565957		Cap, End (l.h.) (includes Item 5) (white)   (Replaces: 8566035)				$ 64.76
4	WP8565954		Cap, End (right) (includes Item 5) (white)   (Replaces: 8566032)				$ 65.84
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10754630		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W10422755		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
14	W10034380		Knob, Control (white/metallic)				$ 25.06
15	3400073		Screw		Appelez-nous	-
16	WPW10291176		Harness, Upper   (Replaces: W10291176)				$ 173.29
17	WPW10683676		Inlet Assembly, Water   (Replaces: W10683676)				$ 207.59
18	WP3357450		Washer, Hose Adapter   (Replaces: 3357450)				$ 11.56
19	WPW10269488		Connector, Hose -"y   (Replaces: W10269488)				$ 89.64
20	285452A		Washer, Filter   (Replaces: W10810281)			Immediately	$ 9.69
21	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194210)			Immediately	$ 24.09
22	W10876654		Harness, Valve   (Replaces: W10684972)				$ 194.92
23	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
24	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
25	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
26	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 76.00
27	WP16123		Washer, Hose   (Replaces: W10242307)				$ 8.16
21A	WP89503		Hose, Water Inlet (hot Water)   (Replaces: W10194211)			Immediately	$ 24.09
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	W10474959		South Africa		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 28.04

    View Diagram in Separate Window       Print Part List
