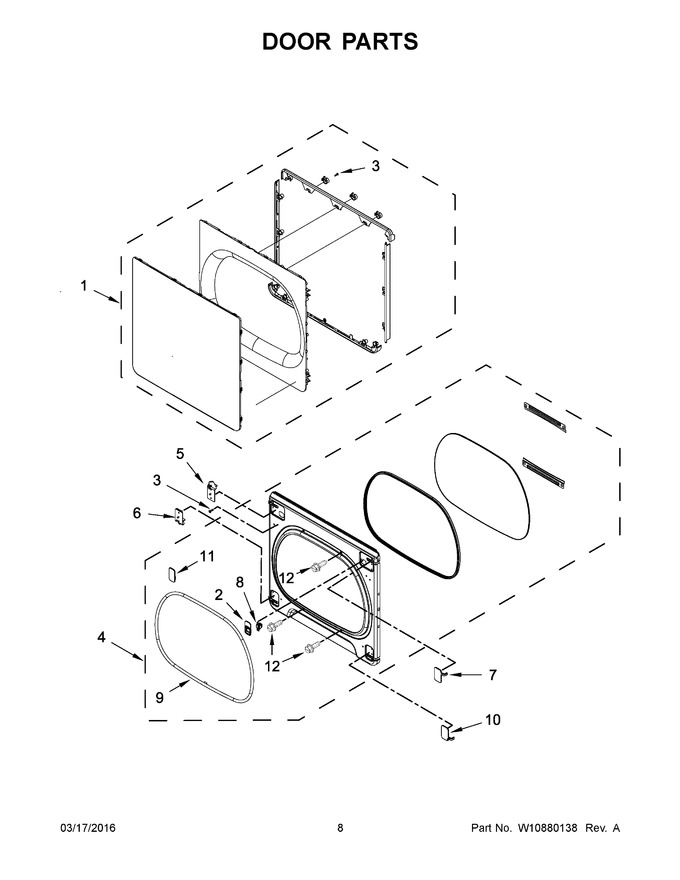

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10614976		Door, Outer (black)				$ 390.37
2	W11103932		Bezel, Door Catch (white)   (Replaces: W10631401)				$ 28.29
3	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
4	W10614997		Assembly, Inner Door (white)				$ 261.85
5	W10850024		Door, Hinge (upper)   (Replaces: W10783754)				$ 85.53
6	W10850044		Door, Hinge (lower)   (Replaces: W10783755)				$ 85.42
7	W10631395		Hinge Cover, Top (white)		Appelez-nous	-
8	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 26.55
9	W10763835		Seal, Door			Immediately	$ 129.79
10	W10631396		Hinge Cover, Bottom (white)		Appelez-nous	-
11	W10631410		Cover, Door Catch (white)		Appelez-nous	-
12	WP488627		Screw   (Replaces: 342055)				$ 8.11

    View Diagram in Separate Window       Print Part List
