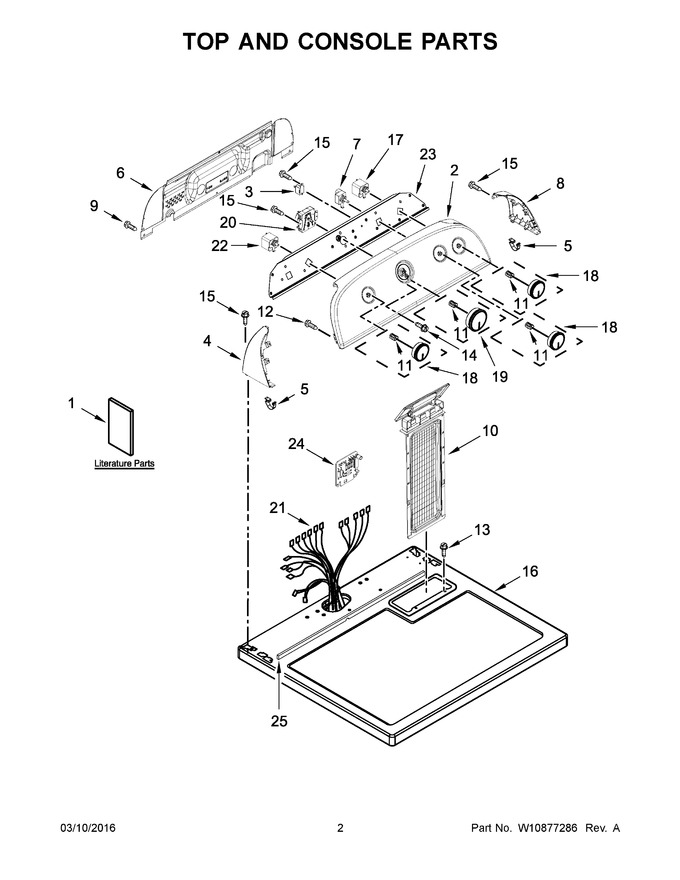

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562352		Use And Care Guide		Appelez-nous	-
2	W10692608		Assembly, Console (white)				$ 266.73
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10520782		End Cap (left White)   (Replaces: W10520782)				$ 64.69
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10556829		Panel, Rear (console)				$ 285.82
7	WP3405156		Switch, Roatary (2 Pos)   (Replaces: 3405156)				$ 152.79
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 64.34
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W10850756		Screw   (Replaces: 8533974)				$ 8.20
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
18	W11176265		Assembly, Control Knob (white/metallic)   (Replaces: W10770858)				$ 52.40
19	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10770866)				$ 45.78
20	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 182.13
21	W10655101		Harness, Main		Appelez-nous	-
22	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 235.13
23	W10556828		Bracket, Control		Appelez-nous	-
24	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
25	W10316616		Seal, Foam				$ 27.79
1A	W10715344		Installation Instructions		Appelez-nous	-
1B	W10185994		Wiring Diagram		Appelez-nous	-
