SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Cooktop Parts
02 - Cooktop Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Manifold Parts
04 - Manifold Parts

Diagram for 05 - Chassis Parts
05 - Chassis Parts

Diagram for 06 - Upper Door Parts
06 - Upper Door Parts

Diagram for 07 - Lower Door Parts
07 - Lower Door Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10748893 Guide, Use & Care Appelez-nous -
2 WPW10244447 Kit, Burner Cap (black)   (Replaces: W10244447) Special Order $ 200.90

3 W10204725 Cooktop (black) Appelez-nous -
4 WPW10406878 Head, Burner (17.5k) (left Front)   (Replaces: W10406878) Special Order $ 107.48

5 W10506365 Knob, Control (black) Appelez-nous -
6 W10518258 Bracket, Cooktop Support Appelez-nous -
7 W11189172 Glide, Main Top   (Replaces: 8016P022-60) In-Stock Immediately $ 17.61

8 WPW10338214 Set, Grate (black)   (Replaces: W10338214) Special Order $ 345.92

9 W10554309 Panel, Manifold (black) Appelez-nous -
1A W10575961 Instructions, Installation Appelez-nous -
1B W10647745 Sheet, Tech Appelez-nous -
1C 9762761 Tips, Safe Cooking (english) Appelez-nous -
1D W10065852 Tips, Safe Cooking (french) Appelez-nous -
2A WPW10244448 Kit, Burner Cap (wetstone)   (Replaces: W10244448) Special Order $ 231.06

3A W10336322 Cooktop (white)   (Replaces: W10204726) Appelez-nous -
4A WPW10406243 Head, Burner (6k) (left Rear)   (Replaces: W10406243) In-Stock Immediately $ 39.08

4B WPW10406797 Head, Burner (12k) (right Front & Right Rear)   (Replaces: W10406797) Special Order $ 92.91

5A W10506366 Knob, Control (white) Appelez-nous -
5B WPW10506367 Knob, Control (stainless)   (Replaces: W10506367) In-Stock Immediately $ 22.80

8A W10338215 Set, Grate (wetstone) Appelez-nous -
9A W10554308 Panel, Manifold (white) Appelez-nous -
9B W10544730 Panel, Manifold (stainless) Appelez-nous -
NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10745669 Harness, Main Appelez-nous -
NI W11157775 Harness, Eol (mrc)   (Replaces: W10409840) Special Order $ 231.69

NI W11172531 Harness, Sensor & Locks   (Replaces: W10745683) Special Order $ 119.20

NI W10408058 Harness, Spark Special Order $ 77.20

NI W10841090 Clamp, Wire   (Replaces: 7111P017-60) Appelez-nous -
NI 8019P026-60 Clip, Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

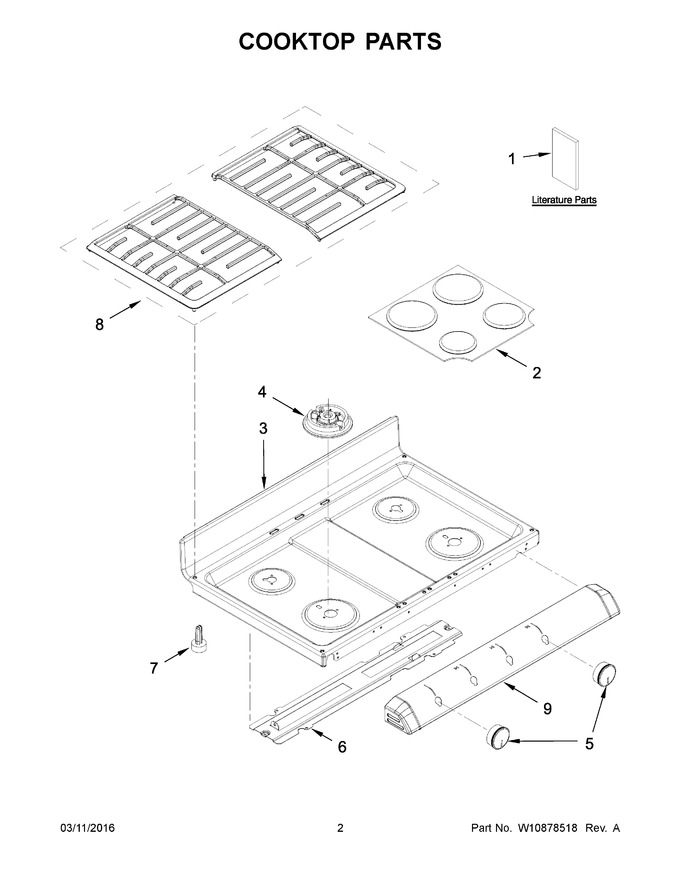

Diagram for WGG555S0BS06
