SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum

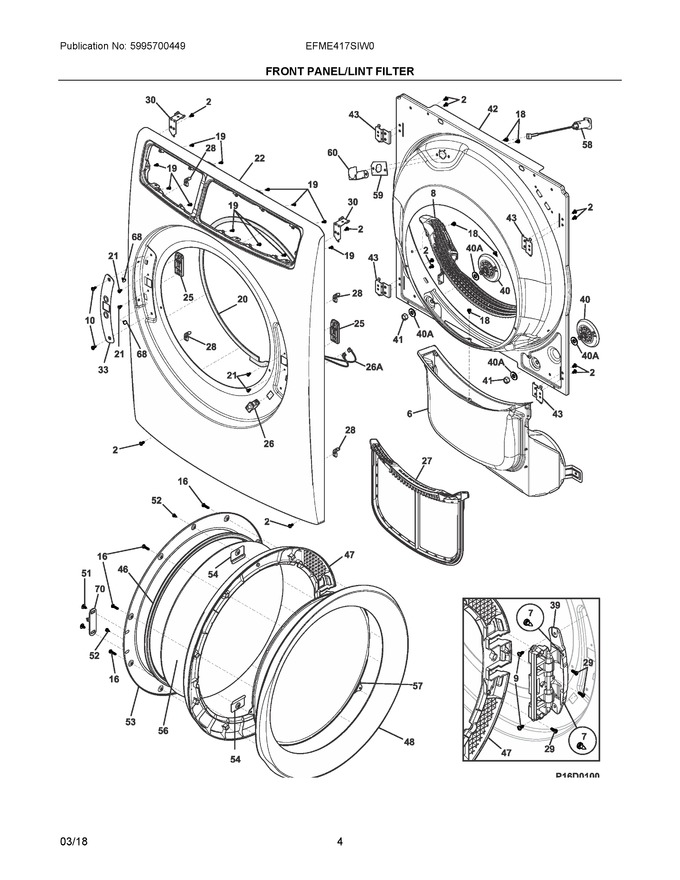

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
6	5304505353		Duct Assembly, Air, W/foam Top Seal				$ 173.50
7	137285100		Screw, Pan Head, #8-18x.750				$ 19.48
8	5304505136		Grill Assembly, Lint, W/moisture Sens				$ 123.70
9	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 18.26
10	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 12.60
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
20	5304505111		Gasket, Foam, Front Panel				$ 91.01
21	137285000		Screw, Pan Head, #8-16x.3125, Qudrex		Appelez-nous	-
22	5304505093		Panel, Dryer Front, White				$ 251.00
25	5304505317		Latch, Door, (2)				$ 67.47
26	134813600		Switch, Door			Immediately	$ 47.88
27	5304511512		Filter, Lint Screen   (Replaces: 5304505076)			Immediately	$ 87.25
28	137034500		Clip, Mounting, Cabinet Front				$ 48.04
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
30	5304505085		Bracket, Top, (2)				$ 11.76
33	5304505011		Cover, Front Panel				$ 17.27
39	5304505133		Hinge Assembly, Nest				$ 201.88
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 86.65
41	134716800		Nut, 3/8-16				$ 3.31
42	5304505121		Bulkhead, Front, White				$ 242.96
43	5304505118		Bracket, Bulkhead, (4)				$ 16.07
46	5304505010		Gasket, Door Seal, Inner			Immediately	$ 109.40
47	5304505114		Frame, Inner Door				$ 186.64
48	5304504997		Frame, Outer Door, White				$ 200.81
51	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 11.81
52	131243700		Screw, Ph, 8-18ab X 0.375   (Replaces: 134529600)				$ 3.73
53	5304504994		Inner Door, Ring, Metal, White				$ 215.27
54	5304505012		Clamp, Door Glass, (2)			Immediately	$ 20.88
56	5304504999		Glass, Dryer Door, Gray   (Replaces: 5304505000)			Immediately	$ 185.66
57	5304505119		Shield, Heat, Door			Immediately	$ 130.94
58	5304521399		Lamp Assembly, Drum, W/harness   (Replaces: 5304505252)				$ 108.98
59	5304505406		Gakset, Lamp				$ 81.11
60	137611700		Bracket, Support, Drum Lamp				$ 14.46
68	134742000		Plug, Hinge Hole, White				$ 12.05
70	5304536127		Striker, Latch, Black   (Replaces: 5304505013)			Immediately	$ 20.56
26A	5304505258		Harness, Wiring, Door Lock				$ 49.32
40A	134716700		Washer, Flat				$ 2.36
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.47
NIA	5304505251		Harness, Wiring, Moisture Sensor				$ 39.64
NIA	5308027429		Adhesive, High Temp			Immediately	$ 66.94

    View Diagram in Separate Window       Print Part List
