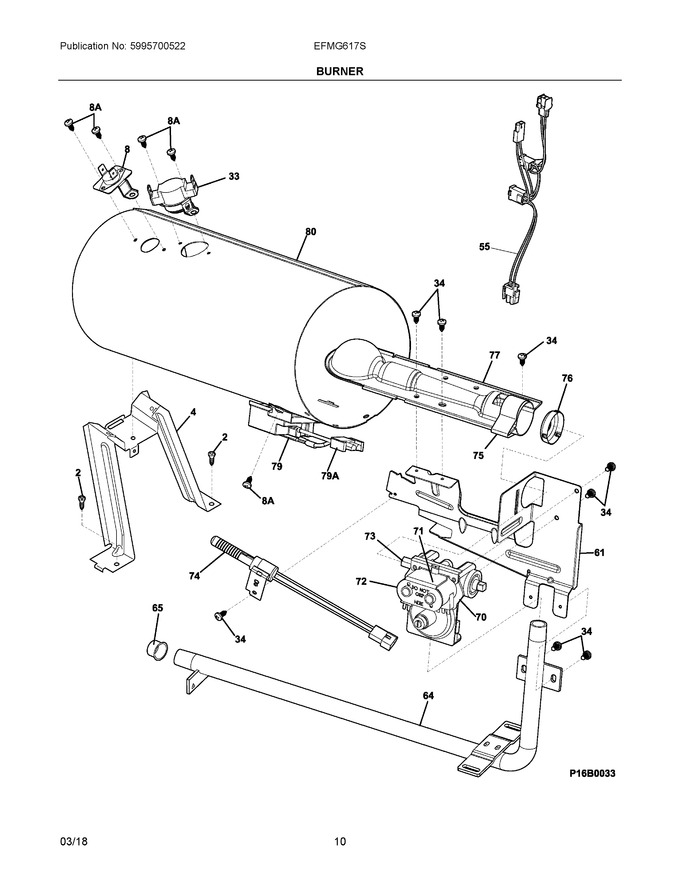

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
4	134713900		Bracket, Heater/burner, Mounting		Appelez-nous	-
8	137539200		Limiter, Thermal			Immediately	$ 27.10
33	137116700		Thermostat, High Limit			Immediately	$ 44.89
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
55	137029500		Harness, Burner				$ 69.30
61	134715800		Bracket, Gas Valve		Appelez-nous	-
64	140295139012		Pipe, Gas   (Replaces: 137019000)				$ 48.04
65	08015112		Cap, Pipe		Appelez-nous	-
70	5303207409		Valve, Gas				$ 481.95
71	5303307291		Coil, Secondary		Appelez-nous	-
72	5303307292		Coil, Booster		Appelez-nous	-
73	5303207410		Orifice, Natural Gas, Size 44				$ 88.99
74	137524000		Igniter, Assembly			Immediately	$ 185.06
75	134258500		Shutter, Air				$ 35.44
76	134714401		Collar, Alignment, Gas Valve   (Replaces: 134714400)				$ 12.85
77	134197700		Burner, Gas				$ 71.66
79	5303281135		Sensor, Radiant			Immediately	$ 113.40
80	134692500		Tube, Burner		Appelez-nous	-
79A	134259100		Harness, Flame Sensor			Immediately	$ 21.82
8A	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 14.96
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
