SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts

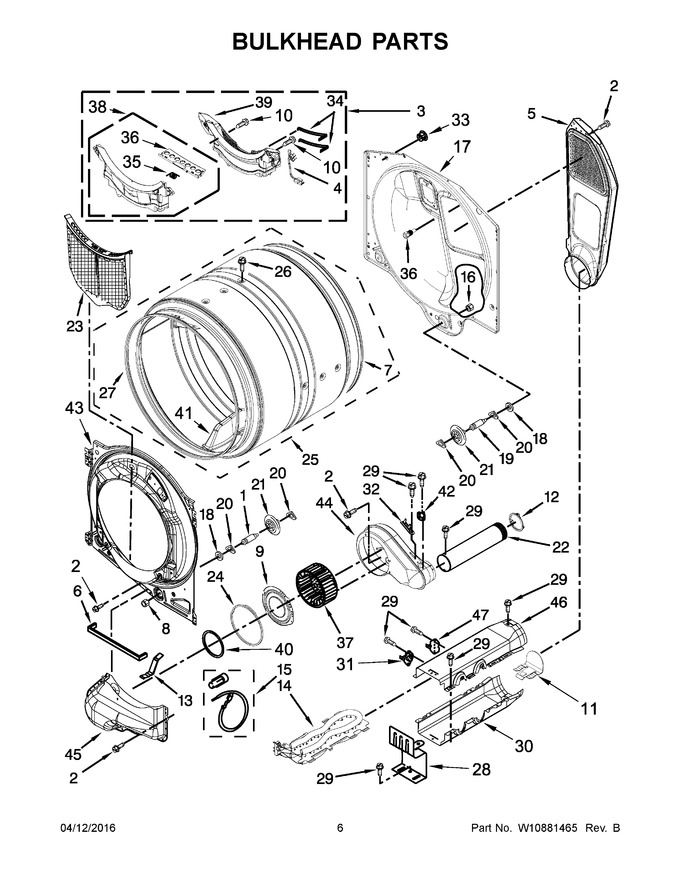

04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10359271		Shaft, Drum Roller - Right Hand Thread   (Replaces: W10359271)			Immediately	$ 62.21
2	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
3	W10906551		Assembly, Outlet Grill And Housing   (Replaces: W10672683)			Immediately	$ 276.56
4	WPW10298258		Harness, Sensor   (Replaces: W10298258)			Immediately	$ 7.84
5	WP3387911		Assembly, Air Duct   (Replaces: 697354)				$ 311.72
6	W11676493		Seal, Housing Outlet   (Replaces: W10211950)			Immediately	$ 27.65
7	280114		Seal, Drum   (Replaces: W10521118)			Immediately	$ 70.82
8	W11812294		Nut, Hex   (Replaces: 3934666)				$ 12.16
9	W10211901		Assembly, Collar				$ 89.60
10	W11590579		Screw   (Replaces: W10794806)				$ 14.03
11	8544776		Flange, Heater Box				$ 18.10
12	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 81.62
13	W10414388		Clip, Lint Duct				$ 13.87
14	WP8544771		Heater Element   (Replaces: W10836011)			Immediately	$ 119.29
14	WP8544771		Element, Heater   (Replaces: 8544771)			Immediately	$ 119.29
15	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.92
16	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 8.49
17	W11299300		Bulkhead, Rear   (Replaces: 3387809)				$ 350.11
18	W11236646		Washer   (Replaces: 3387459)			Immediately	$ 14.03
19	WPW10359272		Shaft, Drum Roller - Left Hand Thread   (Replaces: W10359272)			Immediately	$ 58.48
20	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
21	WPW10314173		Roller, Support   (Replaces: W10314171)			Immediately	$ 28.50
22	WPW10342188		Exhaust Pipe   (Replaces: W10342188)			Immediately	$ 132.76
23	W11758174		Screen, Lint (white)   (Replaces: W10516085)			Immediately	$ 52.12
24	WP697770		Seal, Plate Cover   (Replaces: 697770)			Immediately	$ 7.88
25	W10508188		Assembly, Drum (complete)				$ 365.09
26	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.75
27	W11193479		Seal, Drum Front   (Replaces: W10521122)			Immediately	$ 21.54
28	8066099		Bracket, Heater Box				$ 24.35
29	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
30	8544770		Housing Tab, Heater Box				$ 75.92
31	WP8577274		Thermistor   (Replaces: 8577274)			Immediately	$ 43.61
32	W10909685		Fuse, Thermal (91c)   (Replaces: W10693363)			Immediately	$ 71.42
33	8529007		Plug, Rear Bulkhead				$ 75.11
34	WP3387223		Sensor, Electrode   (Replaces: 3387223)			Immediately	$ 6.17
35	W11678124		Spring, Lint Screen Door   (Replaces: W10726027)				$ 14.29
36	W11156832		Door, Lint Screen   (Replaces: W10672680)			Immediately	$ 56.63
37	WP697772		Wheel, Blower   (Replaces: W10211915)			Immediately	$ 59.07
38	W10905013		Assembly, Housing And Door   (Replaces: W10672681)				$ 215.58
39	W11125442		Grill, Outlet   (Replaces: W10672682)				$ 225.18
40	W11821372		Seal, Blower Cover   (Replaces: W10211899)				$ 21.32
41	W11841932		Bafffle, Drum   (Replaces: W10416098)				$ 38.06
42	WP8557403		Thermostat, High Limit   (Replaces: 8557403)			Immediately	$ 79.75
43	W11712678		Bulkhead, Front   (Replaces: W10673493)			Immediately	$ 238.78
44	WPW10211911		Housing, Blower   (Replaces: W10211911)			Immediately	$ 142.56
45	WPW10211896		Assembly, Lint Duct   (Replaces: W10211896)				$ 209.24
46	WP8544769		Housing Slot, Heater Box   (Replaces: 8544769)				$ 165.62
47	279973		Kit, Thermal Cut-off (includes High Limit Thermostat)   (Replaces: 8318314)			Immediately	$ 75.60

    View Diagram in Separate Window       Print Part List
