SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts

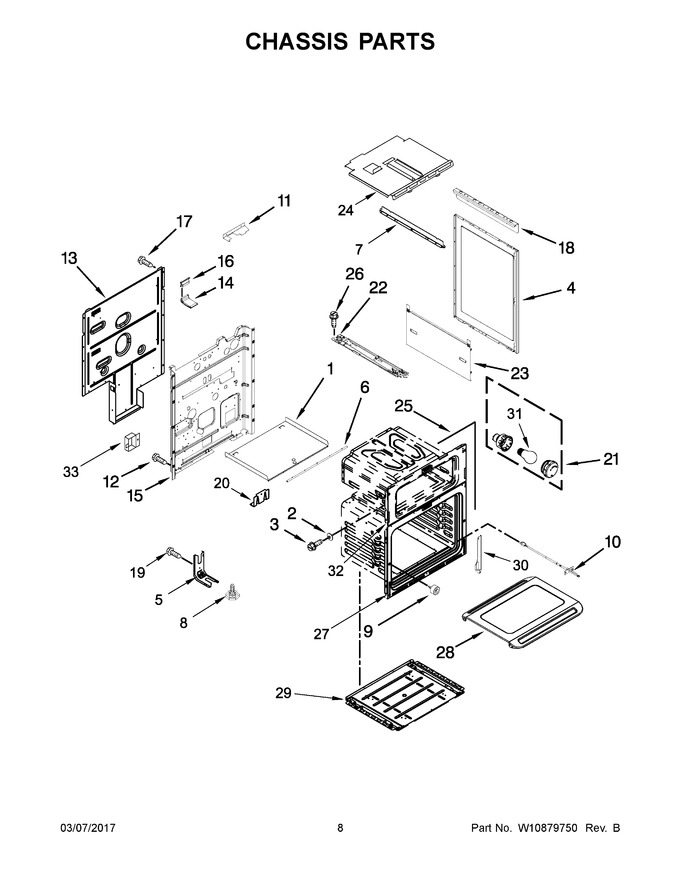

05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319038		Shield, Gemini				$ 150.59
2	WPW10237689		Spacer, Side Panel   (Replaces: W10237689)				$ 83.82
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 8.06
4	W10330375		Panel, Side (black)				$ 82.13
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
6	W10319000		Gasket, Gemini Oven Shield		Appelez-nous	-
7	W10357697		Bracket, Side Panel				$ 24.34
8	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 29.52
9	W10105790		Bumper & Screw				$ 7.41
10	WP7430P044-60		Sensor, Oven   (Replaces: 7430P044-60)			Immediately	$ 175.94
11	W10268558		Cover, Lower Wire		Appelez-nous	-
12	W11347848		Screw   (Replaces: 7101P376-60)				$ 14.23
13	WPW10261387		Cover, Main Wire   (Replaces: W10261387)				$ 208.95
14	W11243157		Assembly, Flue (upper)   (Replaces: W10311326)				$ 370.35
15	W10668728		Back, Main				$ 192.15
16	W10321446		Assembly, Outlet Flue (upper)		Appelez-nous	-
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
18	W10319087		Bracket, U Channel				$ 83.10
19	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
20	W10863342		Support, Lower Oven		Appelez-nous	-
21	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 87.01
22	W11166856		Lock, Rear Mount   (Replaces: W10683517)			Immediately	$ 324.44
23	W10538516		Shield, Side Insulation				$ 142.52
24	W10324643		Support, Insulation		Appelez-nous	-
25	W10318928		Gasket, Oven Door (upper)				$ 177.37
26	74003975		Screw   (Replaces: 7101P375-60)				$ 14.03
27	WPW10308654		Front, Main (lower)   (Replaces: W10308654)				$ 305.83
28	WPW10292551		Pan, Oven Bottom   (Replaces: W10292551)				$ 198.80
29	W10312768		Base, Gemini		Appelez-nous	-
30	W10410463		Cover, Hinge (left)				$ 98.93
31	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
32	W10606341		Front, Main (upper)				$ 180.76
33	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
14A	W10272519		Assembly, Flue (lower)		Appelez-nous	-
16A	W10321445		Assembly, Outlet Flue (lower)		Appelez-nous	-
25A	WPW10269069		Gasket, Oven Door (lower)   (Replaces: W10269069)			Immediately	$ 190.80
30A	W10410461		Cover, Hinge (right)				$ 94.86
4A	WPW10330376		Panel, Side (white)   (Replaces: W10330376)				$ 217.83
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11684919		Insulation, Floor (upper Oven)   (Replaces: W10344586)				$ 122.44
NI	W11684769		Insulation, Wrapper (upper Oven)   (Replaces: W10318910)				$ 126.07
NI	W11688777		Insulation, Back (upper Oven)   (Replaces: W10318918)				$ 75.73
NI	W11688385		Insulation, Wrapper (lower Oven)   (Replaces: W10318911)				$ 127.50
NI	W11685611		Insulation, Back (lower Oven)   (Replaces: W10204081)				$ 123.70

    View Diagram in Separate Window       Print Part List
