Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10694059 Guide, Use & Care Appelez-nous -
2 WPW10299236 Kit, Burner Cap (black)   (Replaces: W10299236) In-Stock Immediately $ 225.49

3 W10336330 Cooktop (black)   (Replaces: W10260169) Special Order $ 420.07

4 WPW10406878 Head, Burner (17.5k) (left Front)   (Replaces: W10406878) Special Order $ 107.48

5 W11030413 Knob, Control (stainless)   (Replaces: W10643306) In-Stock Immediately $ 76.20

6 W10518258 Bracket, Cooktop Support Appelez-nous -
7 W10432544 Griddle In-Stock Immediately $ 56.67

8 W11673268 Kit, Grate   (Replaces: W10649701) Special Order $ 365.59

9 W10708335 Panel, Manifold (black) Appelez-nous -
10 WPW10333445 Base, Burner (fish Burner Only)   (Replaces: W10333445) Special Order $ 110.05

11 WPW10171140 Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140) Special Order $ 168.47

12 W11189172 Glide, Main Top   (Replaces: 8016P022-60) In-Stock Immediately $ 17.61

13 W10719582 Endcap, Manifold (black (left)) Appelez-nous -
14 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 7.55

15 W10814133 Bezel (stainless (kit Of 5))   (Replaces: W10785119) In-Stock Immediately $ 113.38

16 WP3368921 Screw   (Replaces: 3368921) In-Stock Immediately $ 8.56

13A W10719581 Endcap, Manifold (black (right)) Appelez-nous -
13B W10719580 Endcap, Manifold (white (left)) Appelez-nous -
13C W10719579 Endcap, Manifold (white (right)) Appelez-nous -
13D W10772020 Endcap, Manifold (stainless (left)) Appelez-nous -
13E W10772019 Endcap, Manifold (stainless (right)) Appelez-nous -
14A W11233072 Screw (stainless Model Only)   (Replaces: 7101P634-60) In-Stock Immediately $ 14.72

1A W10694069 Instructions, Installation Appelez-nous -
1B W10647745 Sheet, Tech Appelez-nous -
1C 9762761 Tips, Safe Cooking (english) Appelez-nous -
1D W10065852 Tips, Safe Cooking (french) Appelez-nous -
3A W10336331 Cooktop (white)   (Replaces: W10260170) Special Order $ 418.08

3B W10401393 Cooktop (stainless)   (Replaces: W10330921) Special Order $ 437.46

4A WPW10406243 Head, Burner (6k) (left Rear & Right Rear)   (Replaces: W10406243) In-Stock Immediately $ 39.08

4B WPW10406797 Head, Burner (right Front)   (Replaces: W10406797) Special Order $ 92.91

4C WPW10336094 Head, Burner (center)   (Replaces: W10336094) Special Order $ 227.81

9A W10708334 Panel, Manifold (white) Appelez-nous -
9B W11228125 Panel, Manifold (stainless)   (Replaces: W10711043) In-Stock Immediately $ 272.93

NI W10408058 Harness, Spark Special Order $ 77.20

NI W11172531 Harness, Sensor & Locks   (Replaces: W10745683) Special Order $ 119.20

NI W10841090 Clamp, Wire   (Replaces: 7111P017-60) Appelez-nous -
NI 8019P026-60 Clip, Wire Appelez-nous -
NI W11172428 Harness, Eol (mrc)   (Replaces: W10853127) Appelez-nous -
NI W10896751 Washer   (Replaces: 7109P036-60) Appelez-nous -
NI 3196696 Clip, Harness Appelez-nous -
NI N/P Following Parts Not Illustrated Appelez-nous -
NI W10745674 Harness, Main Special Order $ 284.66

NI W10519934 Harness, Dsi 200c Special Order $ 348.15


    View Diagram in Separate Window     Print Icon   Print Part List

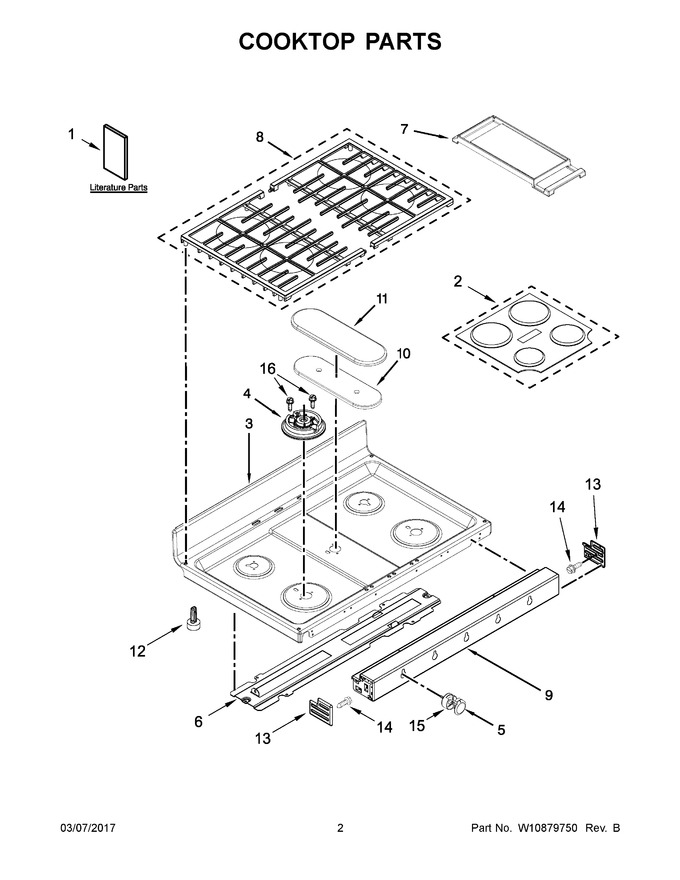

Diagram for KFGD500EWH03
