SELECT A DIAGRAM

01 - Cover Sheet

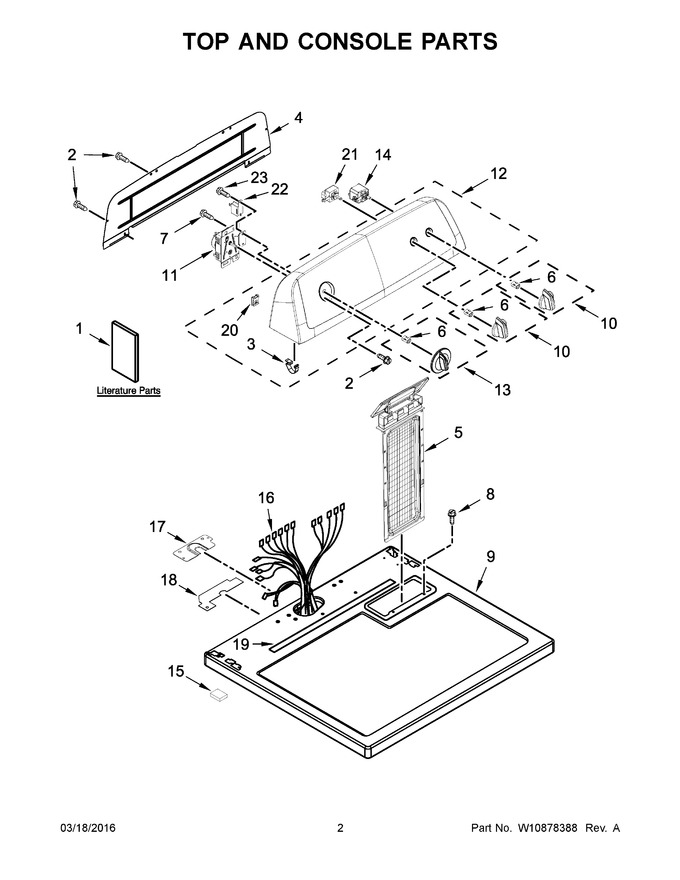

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562352		Use And Care Guide		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 126.09
5	W11778253		Lint Screen(white)   (Replaces: W10717210)			Immediately	$ 52.03
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
7	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.06
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 332.62
10	WPW10453947		Knob, Push To Start (white)   (Replaces: W10453947)				$ 52.15
11	WPW10436303		Assembly, Timer   (Replaces: W10436303)			Immediately	$ 197.69
12	W10917343		Assembly, Console (white)   (Replaces: W10862185)				$ 341.24
13	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 7.93
14	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 88.11
15	3389682		Spacer, Toe Panel				$ 8.79
16	W10450289		Harness, Main		Appelez-nous	-
17	W10112578		Bracket, Harness		Appelez-nous	-
18	W10112603		Seal, Harness		Appelez-nous	-
19	W10316616		Seal, Foam				$ 26.47
20	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.74
21	W11661755		Switch, Rotary   (Replaces: W10420747)				$ 33.05
22	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
23	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.82
1A	W10562358		Installation Instructions		Appelez-nous	-
1B	W10185985		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
