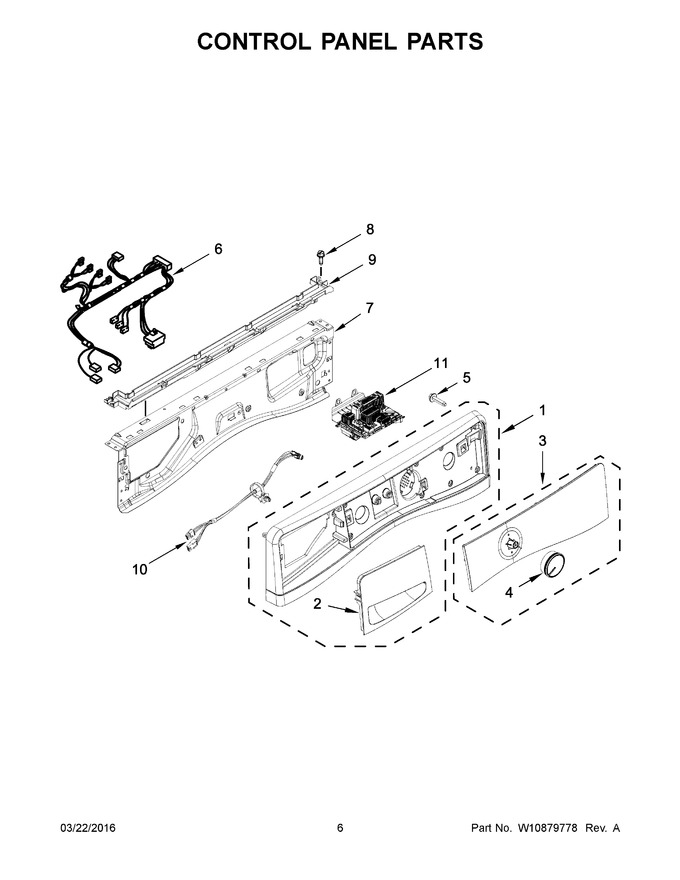

01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10889171 | Assembly, Console (white) (Replaces: W10774354) |
|
- | |||||
| 2 | W10774320 | Handle, Drawer (white) |
|
$ 110.81 | |||||
| 3 | WPW10750477 | Assembly, Iml (white) (Replaces: W10750477) |
|
$ 706.82 | |||||
| 4 | W10875909 | Assembly, Timer Knob (white) (Replaces: W10631126) |
|
Immediately | $ 52.99 | ||||
| 5 | W10589828 | Screw |
|
$ 14.56 | |||||
| 6 | W10685627 | Harness, Main (upper) |
|
$ 147.15 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10653575) |
|
$ 86.61 | |||||
| 10 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 27.18 | |||||
| 11 | W10902051 | Control Unit, Appliance (Replaces: W10810949) |
|
- |
