View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts

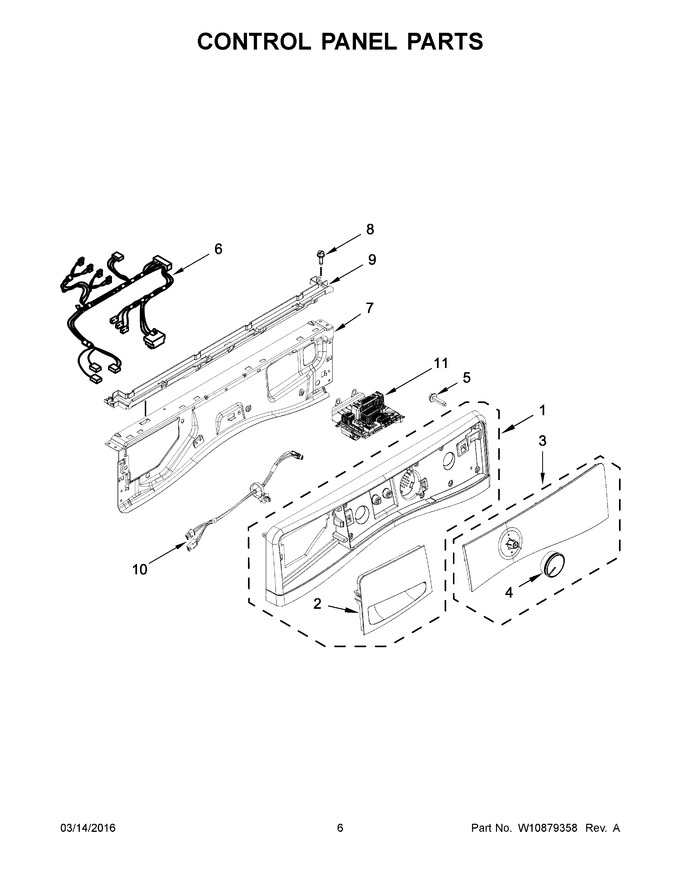

04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10774353 | Assembly, Console (white) |
|
- | |||||
| 2 | W10774320 | Handle, Drawer (white) |
|
$ 110.81 | |||||
| 3 | W10750479 | Assembly, Iml (white) |
|
- | |||||
| 4 | W10875909 | Assembly, Timer Knob (white) (Replaces: W10631126) |
|
Immediately | $ 52.99 | ||||
| 5 | W10589828 | Screw |
|
$ 15.29 | |||||
| 6 | W10685627 | Harness, Main (upper) |
|
$ 154.51 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10653575) |
|
$ 90.94 | |||||
| 10 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 28.54 | |||||
| 11 | W10874763 | Control Unit, Appliance |
|
- | |||||
| 1A | W10889169 | Assembly, Console (chrome Shadow) (Replaces: W10774357) |
|
- | |||||
| 2A | W10774323 | Handle, Drawer (chrome Shadow) |
|
$ 160.17 | |||||
| 3A | W10750480 | Assembly, Iml (chrome Shadow) |
|
- | |||||
| 4A | WPW10631127 | Assembly, Timer Knob (grey) (Replaces: W10631127) |
|
$ 41.95 |
