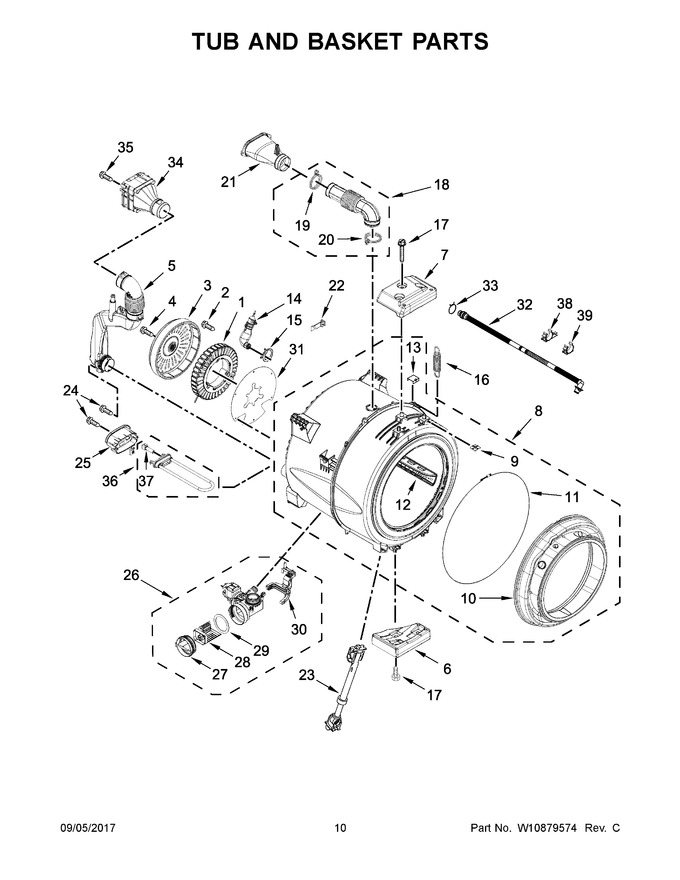

06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10870751 | Stator, Motor (Replaces: W10734060) |
|
Immediately | $ 305.58 | ||||
| 2 | WPW10253476 | Screw, Stator Mounting (Replaces: W10253476) |
|
$ 9.22 | |||||
| 3 | WPW10544980 | Rotor, Motor (Replaces: W10544980) |
|
$ 325.63 | |||||
| 4 | W11253212 | Screw, Rotor Mounting (Replaces: W10253477) |
|
Immediately | $ 15.55 | ||||
| 5 | W10604969 | Pipe, Ventilation Assembly |
|
- | |||||
| 6 | W10237535 | Counterweight, Bottom |
|
$ 198.24 | |||||
| 7 | W10253014 | Counterweight, Top |
|
$ 196.27 | |||||
| 8 | W10901030 | Tub Assembly, Drum (Replaces: W10754106) |
|
$ 1,834.48 | |||||
| 9 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 7.30 | ||||
| 10 | W11106747 | Bellow (Replaces: W10900506) |
|
Immediately | $ 224.25 | ||||
| 11 | W11218344 | Retainer, Bellow To Tub (Replaces: W10237502) |
|
Immediately | $ 34.63 | ||||
| 12 | WPW10597205 | Baffle, Tub (Replaces: W10597205) |
|
Immediately | $ 84.04 | ||||
| 13 | W10793364 | Clamp, Tub |
|
$ 15.48 | |||||
| 14 | W10903220 | Airtrap Assembly (Replaces: W10831586) |
|
Immediately | $ 35.95 | ||||
| 15 | 371499 | Clamp, Hose |
|
$ 12.95 | |||||
| 16 | W11266650 | Spring, Suspension (set Of 2) (Replaces: W10249487) |
|
Immediately | $ 18.90 | ||||
| 17 | W10261496 | Screw, Counterweight |
|
$ 13.89 | |||||
| 18 | WPW10568614 | Vent Hose Coupling Assembly (Replaces: W10568614) |
|
Immediately | $ 116.60 | ||||
| 19 | W10273034 | Clamp, Vent Hose |
|
$ 11.22 | |||||
| 20 | W10353599 | Clamp, Hose |
|
$ 35.24 | |||||
| 21 | WPW10352818 | Vent Tube And Cover (Replaces: W10352818) |
|
$ 83.34 | |||||
| 22 | W10316388 | Clip, Harness Diverter |
|
$ 11.33 | |||||
| 23 | W11415987 | Shock Absorber (Replaces: W10261492) |
|
Immediately | $ 158.53 | ||||
| 24 | W10306501 | Screw |
|
- | |||||
| 25 | W10318155 | Shield, Heater |
|
- | |||||
| 26 | WPW10605427 | Pump (complete) (Replaces: W10799065) |
|
Immediately | $ 67.25 | ||||
| 27 | W11568579 | Cap, Filter (Replaces: W10365898) |
|
Immediately | $ 15.60 | ||||
| 28 | W11712579 | Filter, Element (Replaces: W10365897) |
|
$ 21.29 | |||||
| 29 | W11673307 | Seal, Filter Cap (Replaces: W10365899) |
|
Immediately | $ 8.24 | ||||
| 30 | W10798323 | Bracket, Mounting |
|
$ 78.19 | |||||
| 31 | W10870753 | Shield, Motor (Replaces: W10490826) |
|
$ 39.27 | |||||
| 32 | WPW10562025 | Drain Hose (internal) (Replaces: W10562025) |
|
Immediately | $ 78.97 | ||||
| 33 | WP285655 | Clamp, Hose (Replaces: W10151157) |
|
Immediately | $ 8.81 | ||||
| 34 | W10467494 | Enclosure, Vent |
|
$ 30.29 | |||||
| 35 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 36 | W11763413 | Heater (Replaces: W10576399) |
|
$ 85.79 | |||||
| 37 | WPW10467289 | Sensor, Temperature (Replaces: W10467289) |
|
Immediately | $ 47.80 | ||||
| 38 | W10441646 | Retainer, Drain Hose |
|
$ 19.53 | |||||
| 39 | W10822038 | Retainer, Hose |
|
- |
