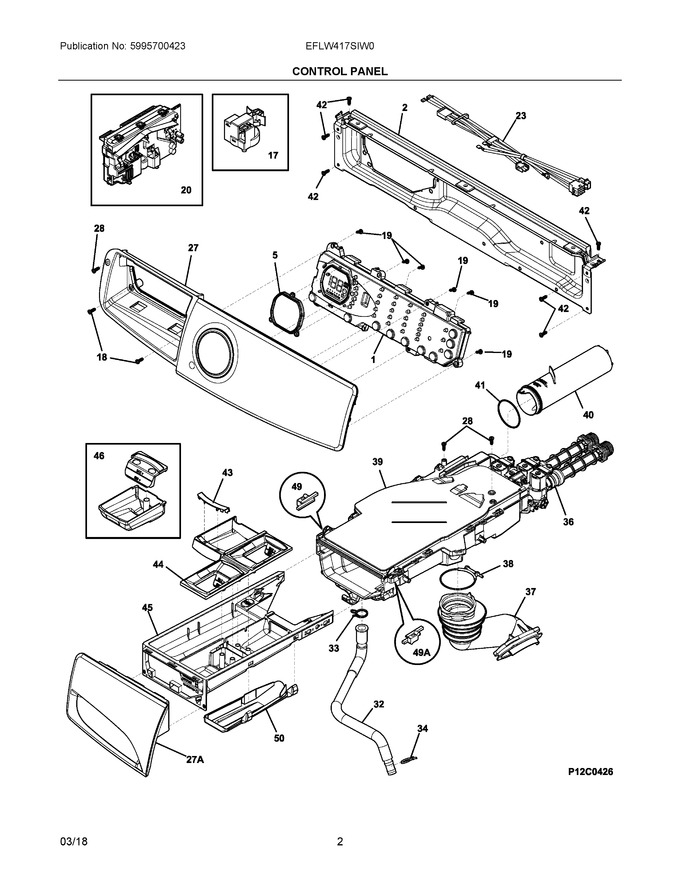

02 - Control Panel
03 - Cabinet/top
04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505612 | Board Assy, Ui Programmed, W/housing-screw |
|
$ 319.69 | |||||
| 2 | 5304505086 | Bracket, Control Panel |
|
$ 78.72 | |||||
| 5 | 5304505345 | Seal, Display Area |
|
$ 17.19 | |||||
| 17 | 5304505436 | Sensor Switch, Pressure |
|
Immediately | $ 57.38 | ||||
| 18 | 131302800 | Screw, Quadrex Ph, 10-16ab X 0.5 |
|
Immediately | $ 29.53 | ||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 7.23 | |||||
| 20 | 5304505574 | Main Board, Assembly (low), Washer, W/housing |
|
$ 290.78 | |||||
| 23 | 5304505170 | Harness, Wiring, Main |
|
$ 161.44 | |||||
| 27 | 5304505575 | Console Assembly, W/overlay |
|
$ 207.43 | |||||
| 28 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 15.75 | ||||
| 32 | 134625500 | Hose, Disp-to-bellows |
|
$ 96.86 | |||||
| 33 | 134737300 | Clamp (Replaces: 131306216) |
|
$ 22.37 | |||||
| 34 | 5304528020 | Cable Tie, Push Mount, 5.20 Inch (Replaces: 131964400) |
|
$ 10.45 | |||||
| 36 | 5304505191 | Valve Assembly, Dispenser |
|
$ 211.31 | |||||
| 37 | 134625700 | Hose, Disp-to-tub |
|
Immediately | $ 80.80 | ||||
| 38 | 134372400 | Clamp, Tub Hose |
|
$ 71.66 | |||||
| 39 | 5304505265 | Housing Assembly, Dispenser, W/valve |
|
$ 237.72 | |||||
| 40 | 134372103 | Tube, Disp-to-overflo |
|
$ 23.30 | |||||
| 41 | 134372200 | O-ring, Overflow Tube |
|
$ 15.27 | |||||
| 42 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 43 | 5304505207 | Indicator, Stain Treatment |
|
$ 14.81 | |||||
| 44 | 5304505336 | Cover, Drawer, W/graphics (Replaces: 134638321) |
|
Immediately | $ 66.19 | ||||
| 45 | 5304505336 | Drawer, Dispenser |
|
Immediately | $ 66.19 | ||||
| 46 | 137143800 | Cup, Dispenser, Liquid |
|
$ 30.52 | |||||
| 49 | 137286700 | Guide, Dispenser Dwr, Lh |
|
$ 15.75 | |||||
| 50 | 134638400 | Conveyor, Dispenser, Lower |
|
$ 22.64 | |||||
| 27A | 5304505576 | Handle Assembly, Drawer, W/overlay |
|
$ 148.85 | |||||
| 49A | 137286710 | Guide, Dispenser Dwr, Rh |
|
- | |||||
| NI | 5304505219 | Energy Guide |
|
- | |||||
| NIA | 134371300 | Gasket, Disp-to-valve |
|
Immediately | $ 56.71 | ||||
| NIA | 134629400 | Screw, Mc5x8.5 Torx, Cabinet Mtg |
|
$ 14.18 | |||||
| NIA | 134407900 | Dampener, Vibration |
|
$ 18.90 |
