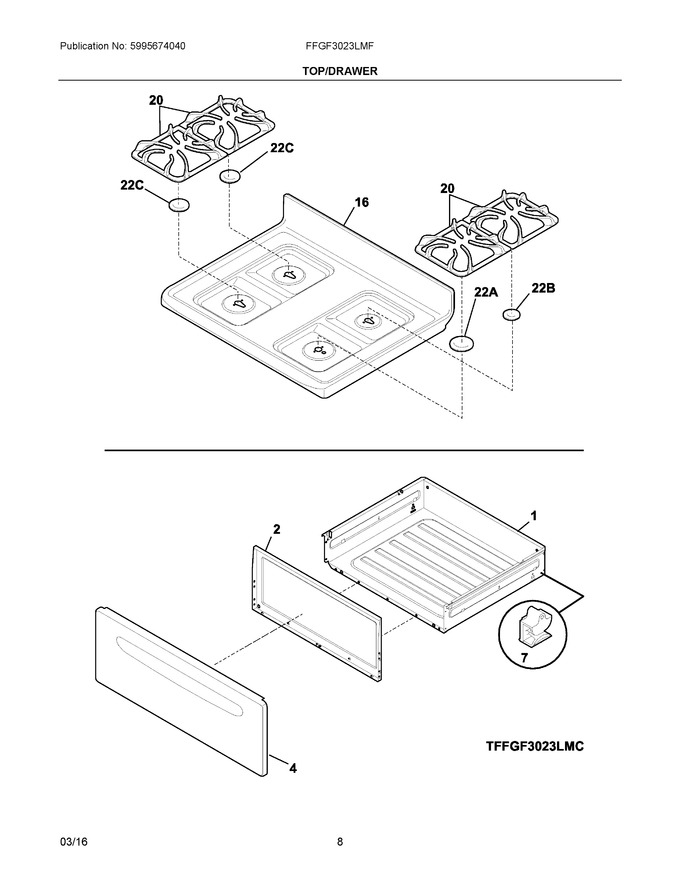

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 122.90
2	5304527988		Liner, Drawer   (Replaces: 316403200)			Immediately	$ 29.49
4	316403412		Panel-drawer, Silver Mist		Appelez-nous	-
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 10.95
16	316254505		Maintop, Assembly, Black				$ 197.03
20	316202405		Grate, Black				$ 164.31
22A	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
22B	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96

    View Diagram in Separate Window       Print Part List
