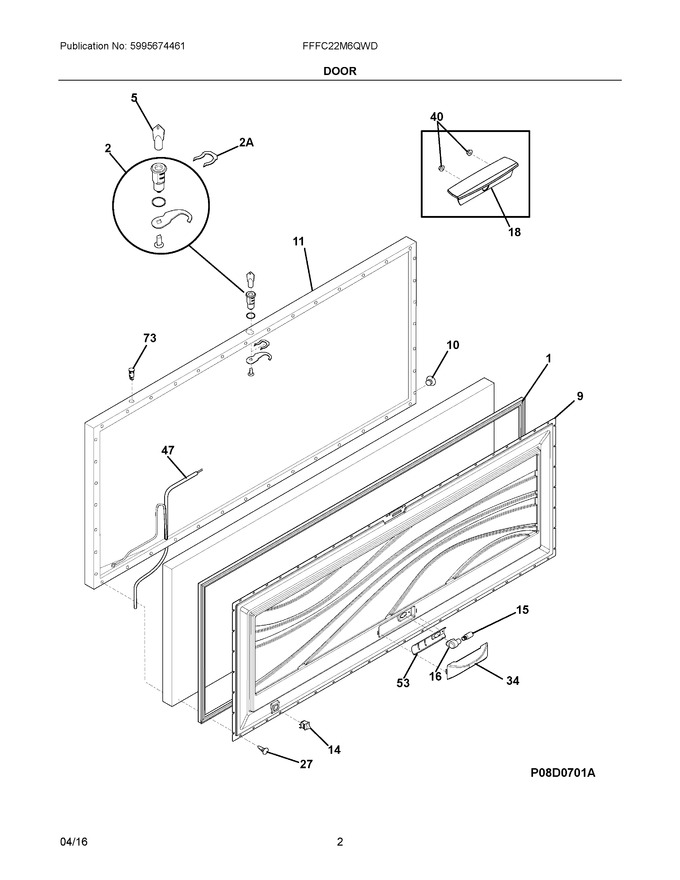

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216469311 | Gasket-door, White |
|
$ 208.01 | |||||
| 2 | 297090100 | Lock Assy |
|
$ 21.27 | |||||
| 5 | 297147700 | Key, Lock |
|
Immediately | $ 8.41 | ||||
| 9 | 297376300 | Panel-inner Door, Frzr |
|
$ 180.50 | |||||
| 10 | 216923001 | Plug Button, 1/4", White |
|
$ 9.87 | |||||
| 11 | 216032428 | Panel-outer Door/lid, White |
|
$ 265.88 | |||||
| 14 | 216822900 | Switch, Light/lamp, Ramp |
|
Immediately | $ 77.96 | ||||
| 15 | 5304517886 | Light, Led (Replaces: 5304495326) |
|
Immediately | $ 82.76 | ||||
| 16 | 297139501 | Socket, Light/lamp, 25 W |
|
$ 21.69 | |||||
| 18 | 5304495391 | Handle, W/graphics (Replaces: 5304494383) |
|
$ 38.56 | |||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 18.48 | |||||
| 34 | 297438600 | Sheild, Light |
|
$ 198.45 | |||||
| 40 | 216922700 | Fastener, .330 Dia Stud, Handle, (2) |
|
$ 13.39 | |||||
| 47 | 5304504154 | Harness, Lid |
|
$ 95.29 | |||||
| 53 | 5304493988 | Shield, Heat |
|
$ 16.54 | |||||
| 73 | 5304495394 | Light Signal, Round, Green |
|
Immediately | $ 31.33 | ||||
| 2A | 297090900 | Clip, Spring |
|
$ 12.05 | |||||
| NI | 5303925098 | Insulation |
|
$ 120.65 | |||||
| NI | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 12.05 | ||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 139.81 |
