SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

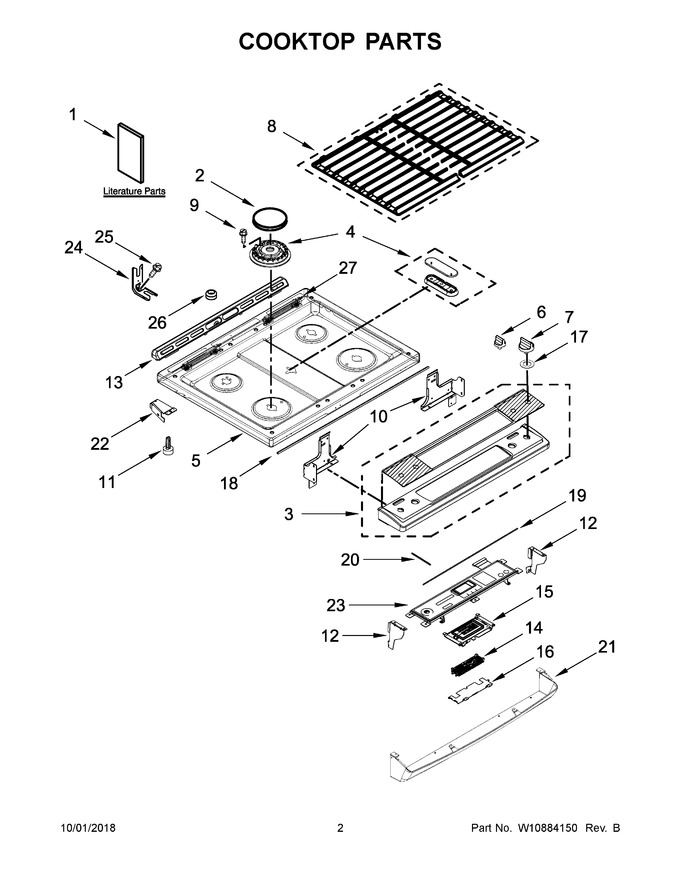

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11124007		Instructions, Installation		Appelez-nous	-
2	W11161846		Kit, Burner Cap (black)   (Replaces: W10837262)			Immediately	$ 118.19
3	W10728507		Console (black)   (Replaces: W10547079)			Immediately	$ 394.97
4	WPW10256028		Spreader, Flame (left Front & Right Front)   (Replaces: W10256028)			Immediately	$ 137.69
5	W10885066		Cooktop (includes Hinges) (black)   (Replaces: W10826650)				$ 425.62
6	W11211501		Knob (mini) (stainless)   (Replaces: W10850039)			Immediately	$ 21.54
7	W11517334		Knob (stainless)   (Replaces: W10850033)			Immediately	$ 57.62
8	W11381339		Kit, Grate (black)   (Replaces: W10889160)				$ 430.25
9	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
10	W10289170		Support, Cooktop (left)				$ 30.05
11	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
12	W10547960		Bracket, Console (left)				$ 23.22
13	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
14	W10885069		Electronic, Control Mrc2   (Replaces: W10759290)			Immediately	$ 527.65
15	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 527.64
16	W10558372		Bracket, Control				$ 25.10
17	W11131701		Bushing (black)   (Replaces: W10739036)				$ 23.27
18	W10802441		Gasket, Console/cooktop   (Replaces: W10612719)			Immediately	$ 22.73
19	W10802457		Gasket, Console   (Replaces: W10689101)				$ 21.33
20	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 22.92
21	W11218703		Console, Lower Panel (black)   (Replaces: W10570527)			Immediately	$ 162.27
22	W10162253		Brace, Corner (left)				$ 74.13
23	W10728523		Assembly, Active Overlay (stainless (for Black Models))   (Replaces: W10145866)				$ 312.69
24	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 23.03
25	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
26	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 21.97
27	N/P		Hinge, Grate (not Serviced)		Appelez-nous	-
10A	W10289169		Support, Cooktop (right)				$ 30.05
10B	W10598048		Bracket, Console (center)				$ 25.73
12A	W10547961		Bracket, Console (right)				$ 23.22
13A	W10577780		Trim, Vent (white)				$ 228.68
1A	W11123992		Guide, Use And Care		Appelez-nous	-
1B	W10844271		Sheet, Tech		Appelez-nous	-
1C	W10844275		Diagram, Wiring		Appelez-nous	-
1D	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1E	W10400067		Guide, Quick Start (french)		Appelez-nous	-
21A	W10570528		Console, Lower Panel (white)				$ 238.47
22A	W10162252		Brace, Corner (right)				$ 78.59
23A	W10728522		Assembly, Active Overlay (white)   (Replaces: W10145867)				$ 338.51
23B	W10728529		Assembly, Active Overlay (black (for Stainless Models))   (Replaces: W10665503)				$ 311.91
3A	W10728505		Console (white)   (Replaces: W10547081)				$ 309.51
3B	W10885068		Console (stainless)   (Replaces: W10842411)				$ 955.42
4A	W10836467		Spreader, Flame (left Rear)   (Replaces: W10464795)				$ 47.63
4B	WPW10256025		Spreader, Flame (right Rear)   (Replaces: W10256025)			Immediately	$ 91.07
4C	W11162114		Spreader, Flame (center)   (Replaces: W10298664)				$ 89.90
5A	W10885067		Cooktop (includes Hinges) (white)   (Replaces: W10826651)				$ 430.59
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W10908899		Harness, Main				$ 235.68
NI	W10580229		Wire, Ground				$ 38.22
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 35.84
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 224.96

    View Diagram in Separate Window       Print Part List
