View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door

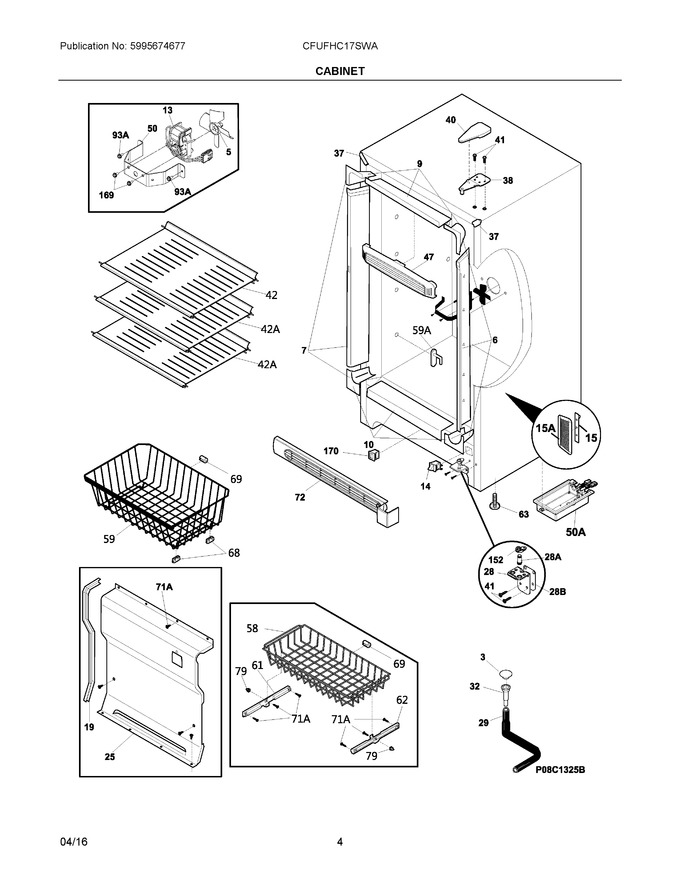

03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 69.08 | |||||
| 5 | 297437300 | Fan Blade |
|
$ 7.46 | |||||
| 6 | 297435601 | Breaker |
|
$ 50.35 | |||||
| 7 | 297435600 | Breaker, W/lock |
|
$ 43.94 | |||||
| 9 | 297403901 | Breaker, Top |
|
$ 61.58 | |||||
| 10 | 297403902 | Breaker, Bottom |
|
$ 67.58 | |||||
| 13 | 297309000 | Fan Motor Evap 115v |
|
Immediately | $ 72.84 | ||||
| 14 | 216822900 | Switch, Light/lamp, Ramp |
|
Immediately | $ 77.96 | ||||
| 15 | 242196204 | Light Board, 3 Led Cluster |
|
Immediately | $ 73.35 | ||||
| 19 | 216204902 | Gasket-evap Cover |
|
Immediately | $ 39.71 | ||||
| 25 | 297099251 | Cover-evaporator |
|
$ 109.93 | |||||
| 26 | 297415900 | Ramp, Door Closer |
|
Immediately | $ 27.49 | ||||
| 28 | 297416301 | Hinge, Reversible, Bottom Rh |
|
$ 16.87 | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 17.67 | ||||
| 32 | 5304511843 | Drain (Replaces: 297382000) |
|
$ 15.27 | |||||
| 35 | 5304497977 | Control Board, Assembly, W/harness (Replaces: 5304496956) |
|
Immediately | $ 319.36 | ||||
| 37 | 297273904 | Trim-cabinet Corner, White, (2) |
|
$ 8.43 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297283800) |
|
Immediately | $ 21.69 | ||||
| 40 | 297164400 | Cover-hinge, White |
|
$ 14.06 | |||||
| 41 | 240578902 | Screw, Hex Head, 1/4-20x5/8, Hinge (Replaces: 297236250) |
|
Immediately | $ 15.75 | ||||
| 42 | 5304528979 | Shelf, 14.62 X 23.88, Wire (Replaces: 297441905) |
|
Immediately | $ 101.19 | ||||
| 47 | 297192903 | Baffle, Air |
|
Immediately | $ 28.12 | ||||
| 50 | 216394050 | Bracket, Fan Motor Mount |
|
$ 25.28 | |||||
| 58 | 808618002 | Basket, Lower (Replaces: 5304494019) |
|
$ 137.66 | |||||
| 59 | 808617902 | Basket (Replaces: 5304493990) |
|
$ 137.66 | |||||
| 61 | 5304493996 | Support, Hanging Basket, Rh |
|
- | |||||
| 62 | 5304493997 | Support, Hanging Basket, Lh |
|
- | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 42.65 | ||||
| 72 | 297387706 | Grille/kickplate |
|
$ 64.50 | |||||
| 79 | 301036 | Nut-insert (Replaces: 3017666) |
|
$ 17.67 | |||||
| 93 | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.94 | ||||
| 152 | 5304511026 | Closer, Bearing Hinge (Replaces: 297416000) |
|
Immediately | $ 11.25 | ||||
| 169 | 216912401 | Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2) |
|
$ 14.18 | |||||
| 170 | 297280400 | Valve, Breather |
|
$ 11.25 | |||||
| 15A | 242202701 | Lens, 3 Led Cluster |
|
Immediately | $ 33.86 | ||||
| 28A | 297438300 | Pin, Bottom Hinge |
|
$ 8.03 | |||||
| 42A | 297441901 | Shelf, 14.50 X 23.88, Wire |
|
$ 106.84 | |||||
| 50A | 5304497977 | Board-main Power, Board & Housing |
|
Immediately | $ 319.36 | ||||
| 59A | 216486500 | Stop-basket, (2) |
|
$ 20.58 | |||||
| 71A | 297146820 | Screw, 8-18ab X.470 Qx |
|
$ 7.33 | |||||
| 93A | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.37 | |||||
| 93B | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 15.17 | |||||
| NI | 5304496697 | Cover, Access, Machine Compt. |
|
- | |||||
| NI | 5304496283 | Grommet, Shelf Mtg |
|
$ 10.24 | |||||
| NI | 30534600 | Clip, Wire (Replaces: 5303313703) |
|
$ 4.21 | |||||
| NI | 216337701 | Screw, Hwh, 10-24 X 0.500, Swage |
|
$ 16.01 | |||||
| NI | 125963-48 | Insulation, 24", Drain Tube (Replaces: 297001704) |
|
Immediately | $ 65.73 | ||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 18.48 | |||||
| NI | 5304504684 | Energy Guide |
|
- | |||||
| NI | 5304497974 | Quick Start Guide |
|
- | |||||
| NI | 5304498525 | Service Data Sheet |
|
- | |||||
| NIA | 297164650 | Bracket, Lh Leg Levelor |
|
$ 18.43 | |||||
| NIB | 297164651 | Bracket, Rh Leg Levelor |
|
$ 17.51 |
