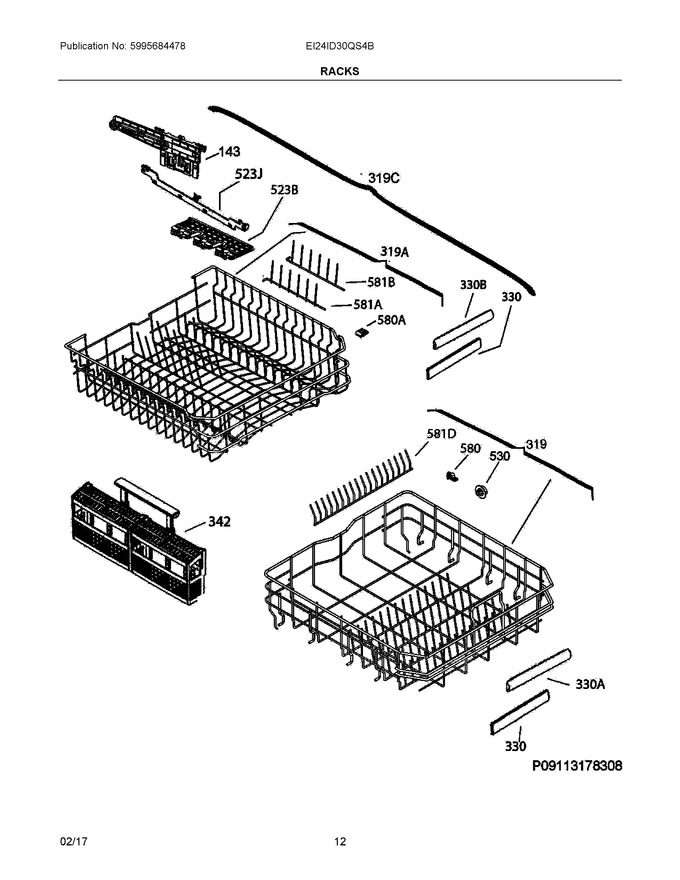

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
143	4056024708		Adjustment, Upper Rack, Lh   (Replaces: 808092529)			Immediately	$ 113.94
319	140066296207		Rack Assembly, Lower, Silver   (Replaces: A00241307)				$ 179.85
330	A00212203		Handle, Rack, Front				$ 92.93
342	A00173201		Cutlery Basket, Assembly, Grey				$ 191.78
530	405507213		Rack Roller, Kit, Lower				$ 50.51
580	807282902		Clip, Partition, Lower Rack				$ 73.24
143A	4056024708		Adjustment, Upper Rack, Rh   (Replaces: 808092530)			Immediately	$ 113.94
319A	5304536446		Rack Assembly, Upper, Silver   (Replaces: A00251510)				$ 247.40
319C	117492530		Rack Assembly, Complete, Silver, Upper, W/adjustments				$ 411.50
330A	A00212206		Handle, Rack, Front, Electrolux				$ 106.31
330A	A00212104		Handle, Lower Rack, Rear		Appelez-nous	-
330B	A00212103		Handle, Upper Rack, Rear				$ 92.14
523B	808124101		Shelf, Cup, Blue				$ 114.87
523J	808138101		Holder, Cup Shelf, Grey		Appelez-nous	-
580A	A00141702		Fixing Clamp, Partition, Upper				$ 83.32
581A	A00237001		Partition, Upper Rack, Lh				$ 178.45
581B	807077101		Partition, Upper Rack, Rh				$ 174.04
581D	A00240901		Partition, Lower Rack				$ 155.93
