01 - Cover Sheet

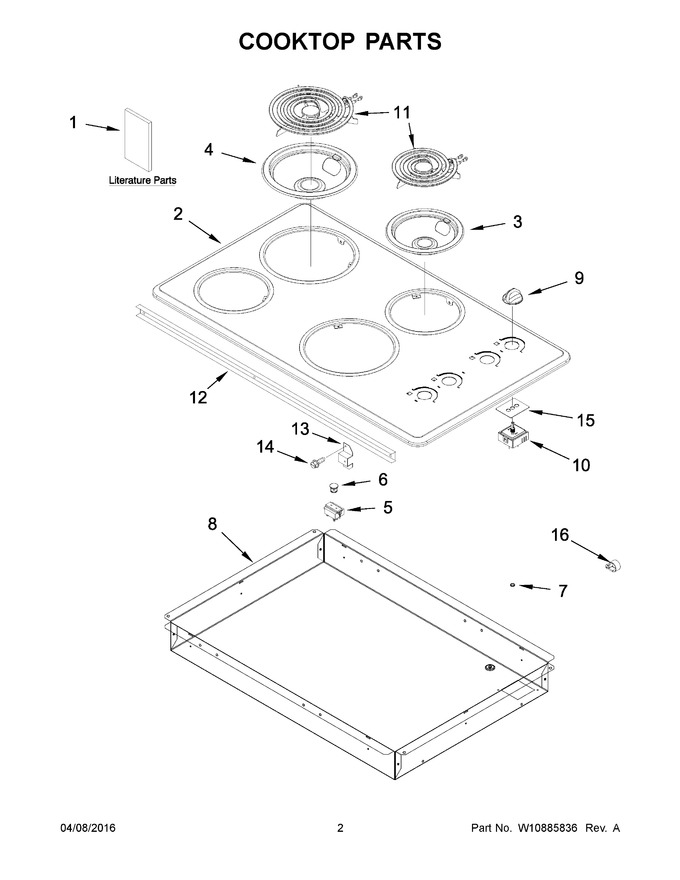

02 - Cooktop Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10852771		Guide, Use & Care		Appelez-nous	-
2	W10886780		Cooktop (black)   (Replaces: W10828615)		Appelez-nous	-
3	WPW10196406		Bowl, Drip Small   (Replaces: 7725P053-60)			Immediately	$ 13.39
4	WPW10196405		Bowl, Drip Large   (Replaces: 7725P054-60)			Immediately	$ 17.29
5	W10852510		Light, Indicator   (Replaces: 7407P102-60)				$ 123.80
6	W11690131		Lens, Indicator Lamp   (Replaces: 7730P012-60)				$ 7.85
7	W11577436		Grommet, Harness   (Replaces: 8008P010-60)		Appelez-nous	-
8	N/P		Box, Burner (not Serviced)		Appelez-nous	-
9	W10270282		Knob, Control (black)				$ 21.26
10	WPW10326246		Switch, Infinite (left Front & Right Rear)   (Replaces: W10326246)				$ 153.02
11	WPW10259868		Element, Surface (6") (left Front & Right Rear)   (Replaces: W10828616)			Immediately	$ 173.17
12	3802F070-51		Brace, Top		Appelez-nous	-
13	3801F183-45		Bracket, Main Top		Appelez-nous	-
14	WP4159193		Screw   (Replaces: 7101P336-60)				$ 5.07
15	7212P030-60		Gasket, Switch		Appelez-nous	-
16	7111P002-60		Clamp, Wire		Appelez-nous	-
10A	W11162115		Infinite Swiitch (left Rear & Right Front)   (Replaces: W10600015)			Immediately	$ 110.10
11A	W10828617		Element, Surface (8") (left Rear & Right Front)		Appelez-nous	-
1A	W10458811		Instructions, Installation		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1D	W10852773		Diagram, Wiring		Appelez-nous	-
2A	W10886781		Cooktop (white)   (Replaces: W10828619)		Appelez-nous	-
9A	W10270283		Knob, Control (white)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10845395		Harness, Main		Appelez-nous	-
NI	W10845396		Harness, Coil Cooktop		Appelez-nous	-
