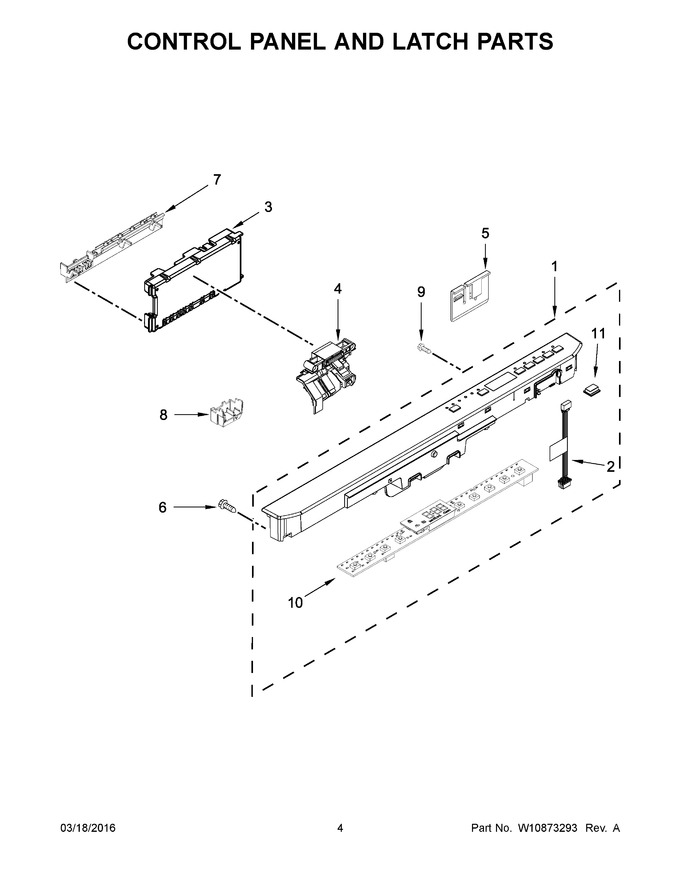

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10880556		Console Assembly (black)   (Replaces: W10831197)				$ 349.71
2	W11028004		Jumper, 4-wire   (Replaces: W10566903)				$ 22.37
3	W10874259		Control, Electronic   (Replaces: W10843730)				$ 310.04
4	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10653840)			Immediately	$ 34.18
5	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
6	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
7	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
8	W10783730		Box, Connector   (Replaces: W10756253)				$ 31.41
9	WPW10348408		Screw (long)   (Replaces: W10348408)			Immediately	$ 7.55
10	W10619841		User Interface				$ 355.28
11	W10685076		Button, Console (black)   (Replaces: W10613680)				$ 23.81
11A	W10685079		Button, Console (grey)   (Replaces: W10620464)			Immediately	$ 23.81
11B	W10683135		Button, Console (midnight Grey)				$ 46.80
1A	W10880557		Console Assembly (white)   (Replaces: W10831198)				$ 348.19
1B	W10880558		Console Assembly (stainless)   (Replaces: W10831199)				$ 360.06

    View Diagram in Separate Window       Print Part List
