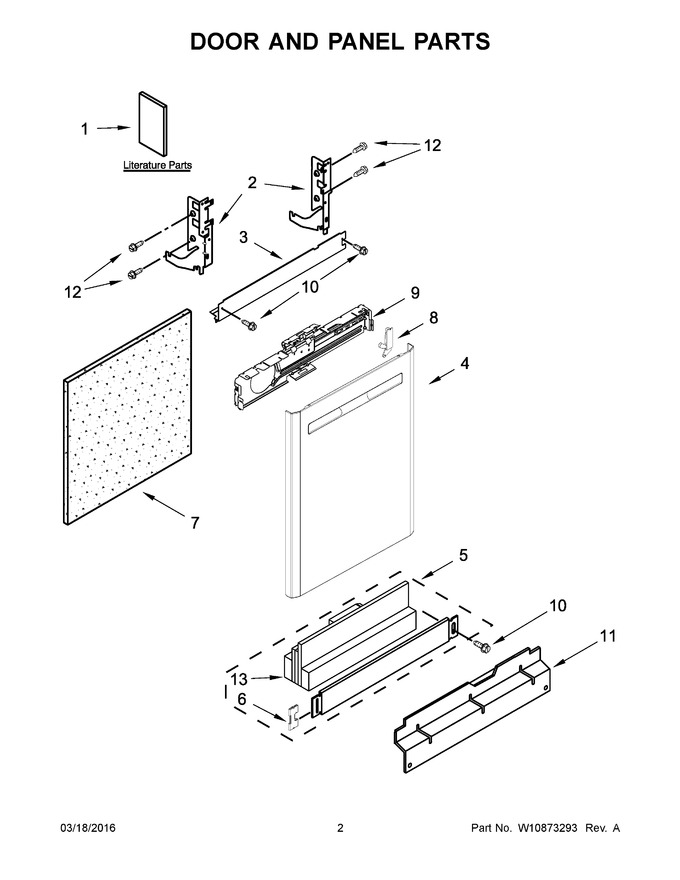

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W10830494		Panel Front (includes Item 8) (black)		Appelez-nous	-
5	W10871196		Toe Panel (black)   (Replaces: W10586590)				$ 174.04
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
7	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
8	W10839529		Light, Pipe				$ 74.48
9	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
10	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
11	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	W10831329		Insulation, Four Layer   (Replaces: W10526105)			Immediately	$ 43.30
10A	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
11A	WPW10441007		Access Panel (white)   (Replaces: W10195778)				$ 170.94
1A	W10832286		Energy Guide		Appelez-nous	-
1B	W10832285		Use & Care Guide		Appelez-nous	-
1C	W10751162		Tech Sheet, English		Appelez-nous	-
1D	W10751165		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
4A	W10830495		Panel Front (includes Item 8) (white)		Appelez-nous	-
4B	W11239424		Panel Front (includes Item 8) (monochromatic Stainless)   (Replaces: W10830502)				$ 409.93
5A	WPW10586591		Toe Panel (white)   (Replaces: W10586591)				$ 309.39
